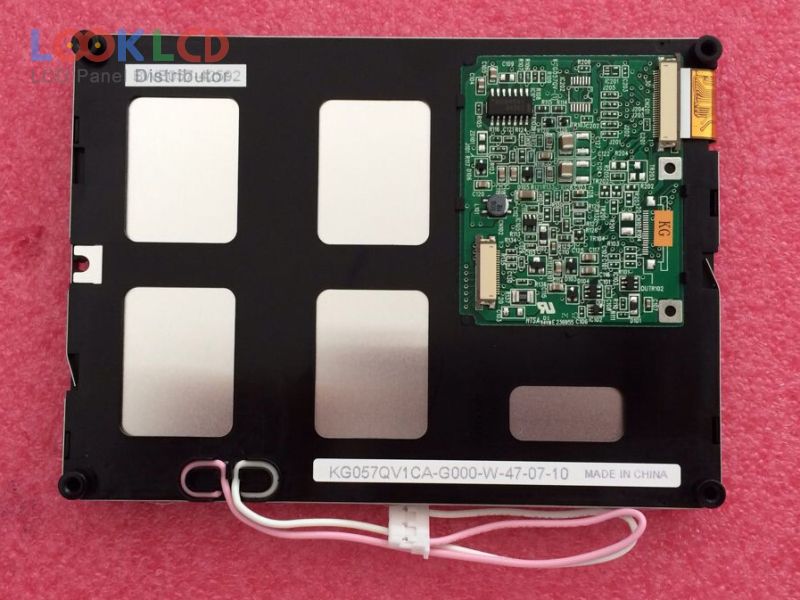

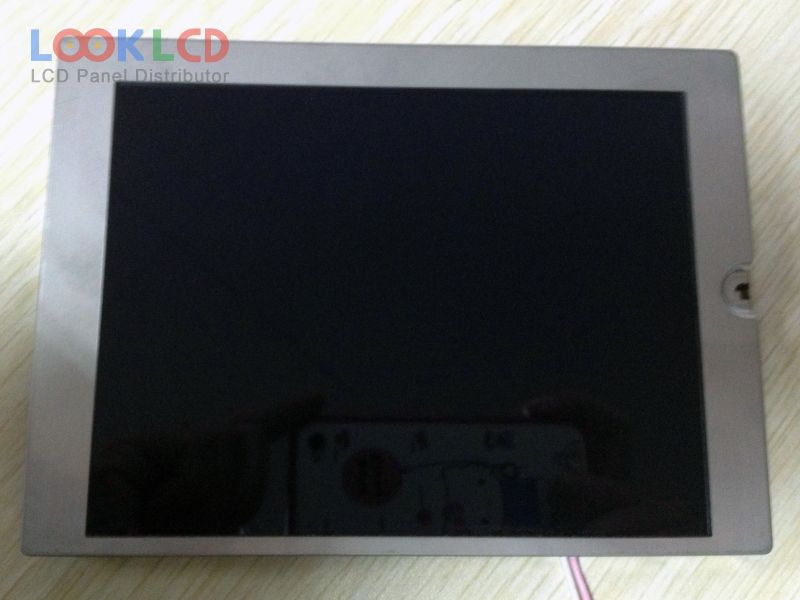

| PartNumber | KG057QV1CA-G000 |
| Značka | Kyocera |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 220 |
| CR | 10:1 |
| Barvy | Monochrome |
| Podsvícení | CCFL |
| Rozhraní | Parallel Data |
| značka panelu | Kyocera |
| panelový model | KG057QV1CA-G000 |
| typ panelu | FSTN-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320×240 , QVGA |
| zobrazovací mód | STN, Black/White (Negative), Transmissive |
| aktivní oblast | 115.18×86.38 mm |
| obrys | 144×104.8×13.2 mm |
| povrch | Glare (Haze 0%) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 10:1 (Typ.) |
| zobrazit barvy | Monochrome |
| Doba odezvy | 500 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/20/40 (Min.)(CR≥2)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| vstupní napětí | 3.3/5.0V (Typ.)(VDD) |
| aplikace | IA |
