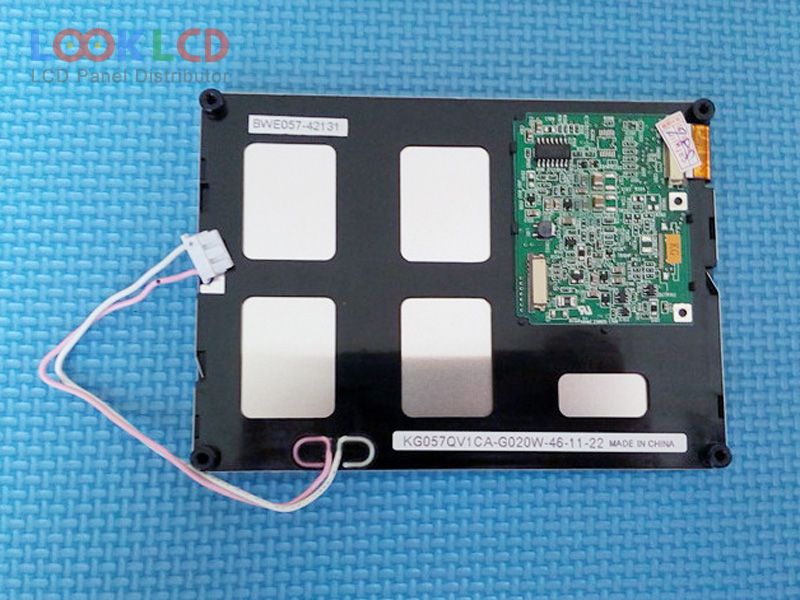

| PartNumber | KG057QV1CA-G020W |
| Značka | Kyocera |
| Velikost | 5.7 |
| aplikace | IA |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 260 |
| CR | 4:1 |
| Barvy | Monochrome |
| Podsvícení | CCFL |
| Rozhraní | Parallel Data |
| značka panelu | Kyocera |
| panelový model | KG057QV1CA-G020W |
| typ panelu | STN-LCD , LCM |
| velikost panelu | 5.7 inch |
| rozlišení | 320×240 , QVGA |
| zobrazovací mód | STN, Blue mode (Negative), Transmissive |
| aktivní oblast | 115.18×86.38 mm |
| obrys | 144×104.8×13.2 mm |
| povrch | Glare (Haze 0%) |
| jas | 260 cd/m² (Typ.) |
| kontrastní poměr | 4:1 (Typ.) |
| zobrazit barvy | Monochrome |
| Doba odezvy | 380/120 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/40 (Typ.)(CR≥2)(L/R/U/D) |
| frekvence | 75Hz |
| typ lampy | 1 pcsCCFLOptional |
| signálové rozhraní | Parallel Data (4-bit), 20 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VDD) |
| aplikace | IA |
| KG057QV1CA-G00 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G000 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G01 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020W | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G03 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| KG057QV1CF-G050 | Kyocera | 5.7 | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| AA121TD01 | Mitsubishi | 12.1 | 1280×800 |
| G085VW01 V3 | AUO | 8.5 | 800×480 |
| LLB121ST01 | Samsung | 12.1 | 800×600 |
| LM64183P | SHARP | 9.4 | 640×480 |
| LTD104C11Z | TOSHIBA | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| RGS10096064YR000 | RiTdisplay | 0.95 | 96×64 |
| TM150XG-A02-01 | SANYO | 15.0 | 1024×768 |
| TX31D32VM2AAA | KOE | 12.1 | 800×600 |
| UG-2896GDEAF11 | WiseChip | 1.3 | 128×96 |
