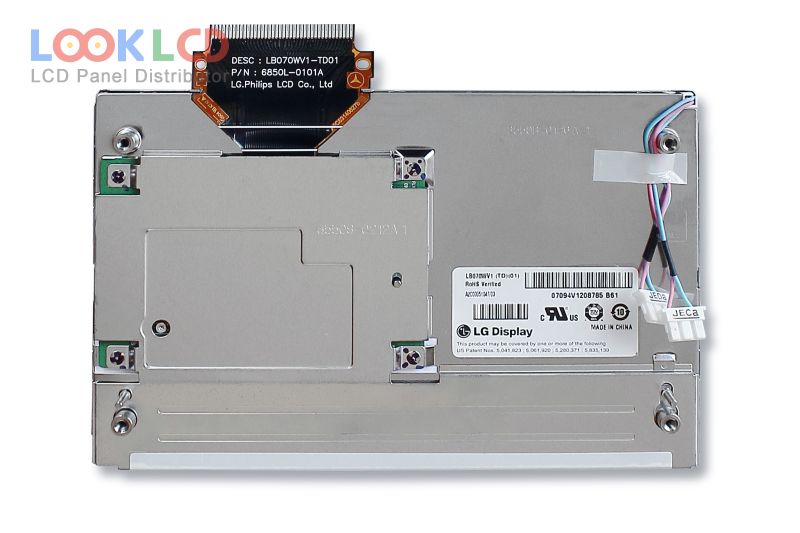

| PartNumber | LB070WV1-TD01 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 600 |
| CR | |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | LG.Philips LCD |
| panelový model | LB070WV1-TD01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 170×109.6×17.3 mm |
| povrch | Antiglare |
| jas | 600 cd/m² (Min.) |
| kontrastní poměr | |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 10/40 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| aplikace | CNS |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LB070WQ6-TD01 | LG Display | 7.0 | 400×234 |
| LB070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD12 | LG Display | 7.0 | 800×480 |
| LB070WV3-SD03 | LG Display | 7.0 | 800×480 |
| LB070WV7-TL01 | LG Display | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| AM-1024600KTMQW-04H | AMPIRE | 7.0 | 1024×600 |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AV080WSM-NW3 | BOE | 8.0 | 1024×600 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| HSD070PFW3-C01 | HannStar | 7.0 | 1024×600 |
| LB040Q02-TD02 | LG Display | 4.0 | 320×240 |
| NL4827HC19-05A | NLT | 4.3 | 480×272 |
