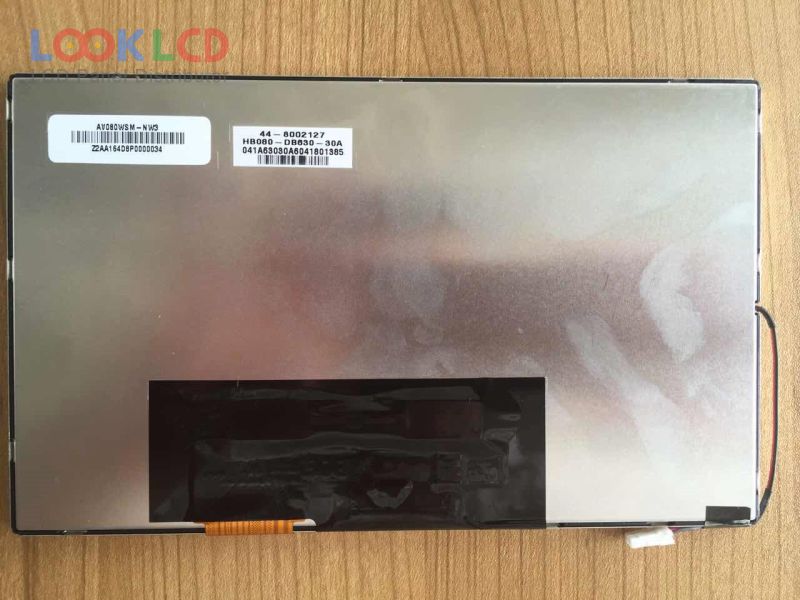

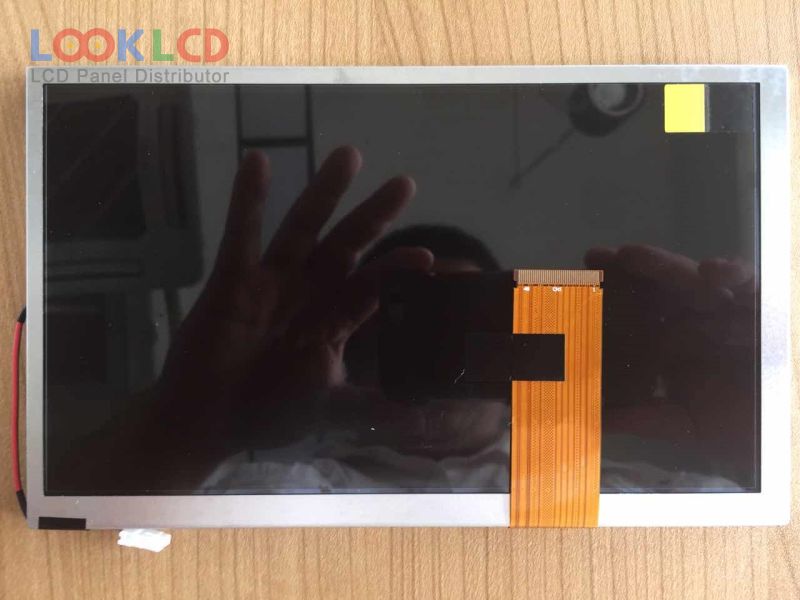

| PartNumber | AV080WSM-NW3 |
| Značka | BOE |
| Velikost | 8.0 |
| aplikace | CNS |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 600 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | BOE |
| panelový model | AV080WSM-NW3 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.0 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | ADS, Normally Black, Transmissive |
| aktivní oblast | 176.64×99.36 mm |
| obrys | 192.8×116.9×7.1 mm |
| povrch | |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S10PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 40 pins |
| vstupní napětí | 3.3/11.5/24/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikace | CNS |
