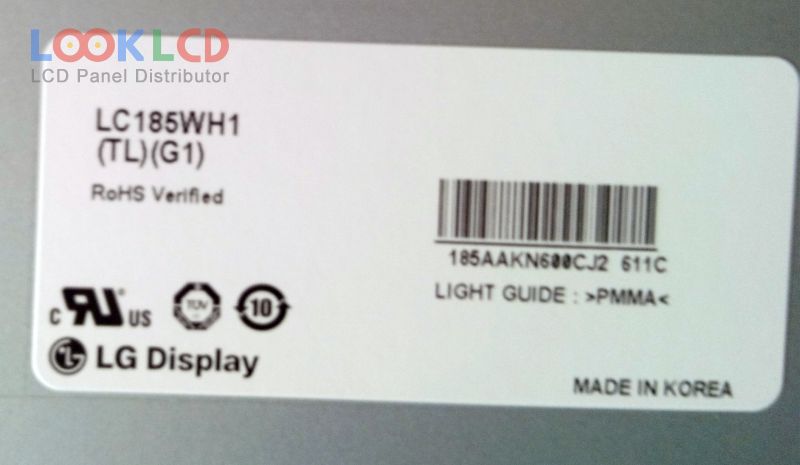

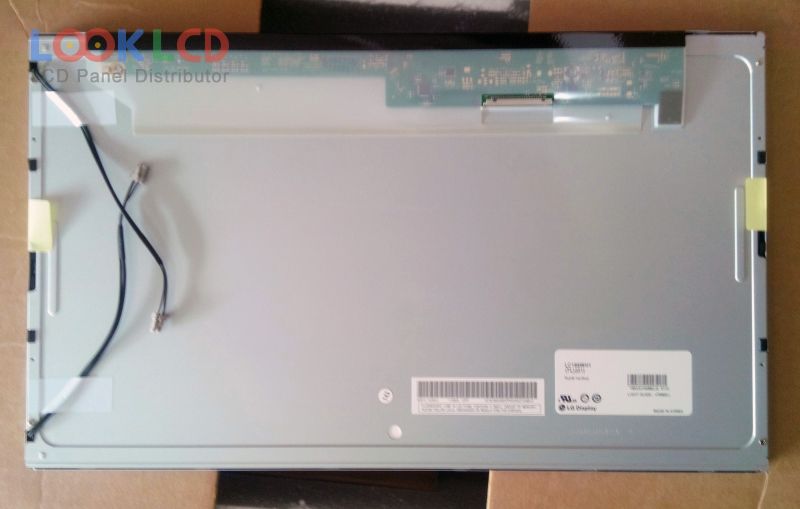

| PartNumber | LC185WH1-TLG1 |
| Značka | LG Display |
| Velikost | 18.5 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LC185WH1-TLG1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 18.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 409.8×230.4 mm |
| obrys | 430.37×254.6×13.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC) |
| Doba odezvy | 1.1/3.9 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | LCTV |
| G185XW01 V1 | AUO | 18.5 | 1366×768 |
| LC185WH1-TLG1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLH1 | LG Display | 18.5 | 1366×768 |
| LM185WH2-TLE2 | LG Display | 18.5 | 1366×768 |
| LTM185AT04 | Samsung | 18.5 | 1366×768 |
| LTM185AT05 | Samsung | 18.5 | 1366×768 |
| M185B1-L02 | Innolux | 18.5 | 1366×768 |
| M185XTN01.0 | AUO | 18.5 | 1366×768 |
| M185XW01 V3 | AUO | 18.5 | 1366×768 |
| MT185GW01 V.0 | Innolux | 18.5 | 1366×768 |
| LC185EXN-SCA1 | LG Display | 18.5 | 1366×768 |
| LC260WX2-SL01 | LG Display | 26.0 | 1366×768 |
| LC430EGG-FHM1 | LG Display | 43 | 3840×2160 |
| LC430EUE-FHM1 | LG Display | 43 | 1920×1080 |
| LC650DUF-PGF1 | LG Display | 65 | 1920×1080 |
| LTA216AT01 | Samsung | 21.6 | 1366×768 |
| LTY400HM10 | Samsung | 40 | 1920×1080 |
| T260XVN01.1 | AUO | 26.0 | 1366×768 |
| T420HW07 V4 | AUO | 42 | 1920×1080 |
| T500HVN02.2 CELL | AUO | 50 | 1920×1080 |
