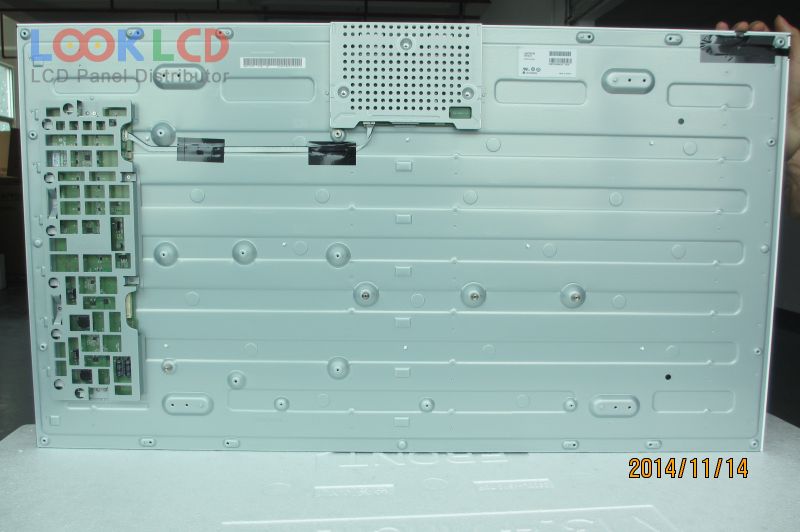

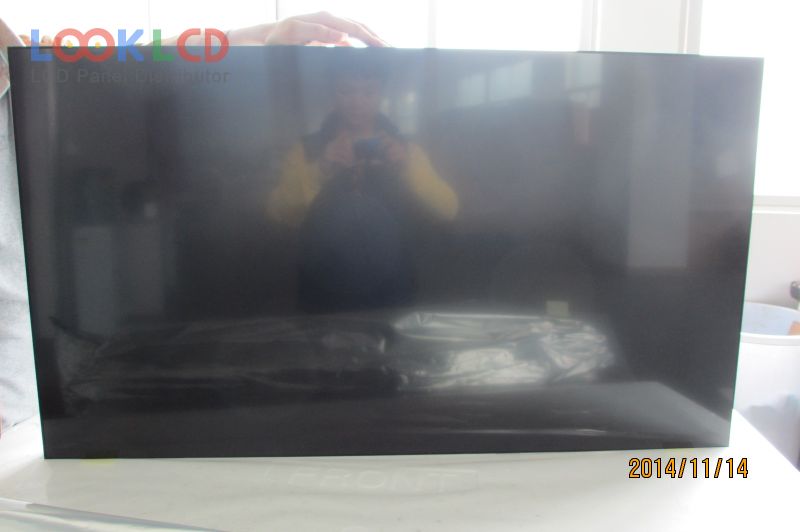

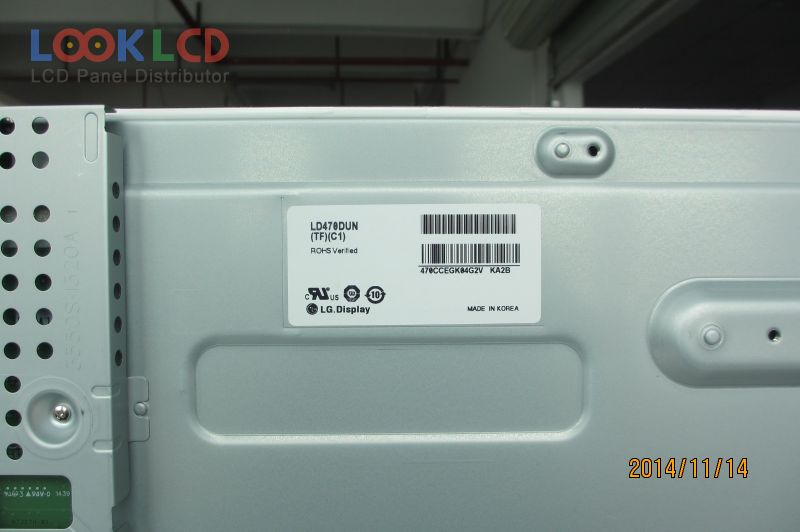

| PartNumber | LD470DUN-TFC1 |
| Značka | LG Display |
| Velikost | 47 |
| aplikace | DID |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 450 |
| CR | 1200:1 |
| Barvy | 1.06B |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LD470DUN-TFC1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 47 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | S-IPS, Normally Black, Transmissive |
| aktivní oblast | 1039.68×584.82 mm |
| obrys | 1044.9×590×52.8 mm, Videowall Seam 5.2 mm |
| povrch | Antiglare (Haze 10%), Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 1200:1 (Typ.) |
| zobrazit barvy | 1.06B (8-bit + Dithering), CIE193168% |
| Doba odezvy | 12 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 10-bit), 51 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | DID |
| LC470DUN-SFU2 | LG Display | 47 | 1920×1080 |
| LC470EUD-SDF1 | LG Display | 47 | 1920×1080 |
| LC470EUN-PEF1 | LG Display | 47 | 1920×1080 |
| LD470DUE-SFR1 | LG Display | 47 | 1920×1080 |
| LD470DUN-TFB1 | LG Display | 47 | 1920×1080 |
| LD470DUN-TFC1 | LG Display | 47 | 1920×1080 |
| LD470DUP-SEH2 | LG Display | 47 | 1920×1080 |
| LD470DXS-SCA1 | LG Display | 47 | 1366×768 |
| LD470DXS-SCB1 | LG Display | 47 | 1366×768 |
| LD470WUB-SCA1 | LG Display | 47 | 1920×1080 |
| LD470DXS-SCA1 | LG Display | 47 | 1366×768 |
| LD550DUS-SEF1 | LG Display | 55 | 1920×1080 |
| LTI216XM01 | Samsung | 21.6 | 960×960 |
| LTI460AA04 | Samsung | 46 | 1366×768 |
| LTI460AN01 | Samsung | 46 | 1366×768 |
| LTI550HN05 | Samsung | 55 | 1920×1080 |
| LTI550HN08 | Samsung | 55 | 1920×1080 |
| LTI550HN11 | Samsung | 55 | 1920×1080 |
| LTI550HN14 | Samsung | 55 | 1920×1080 |
| P460HVN01.1 | AUO | 46 | 1920×1080 |
