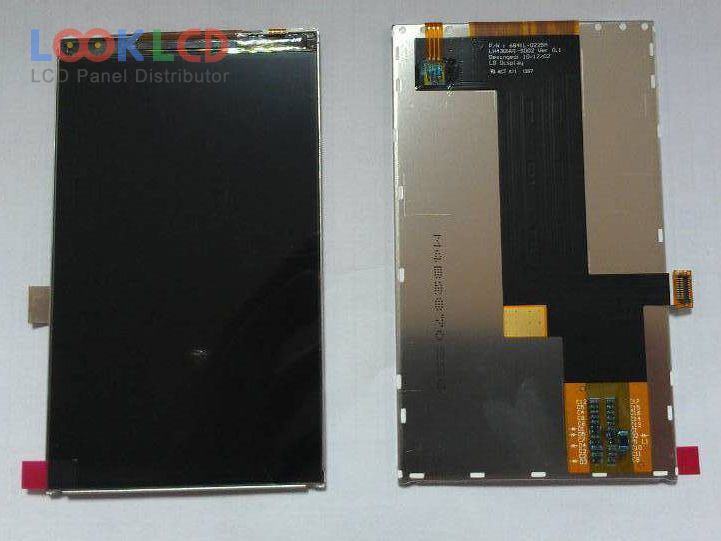

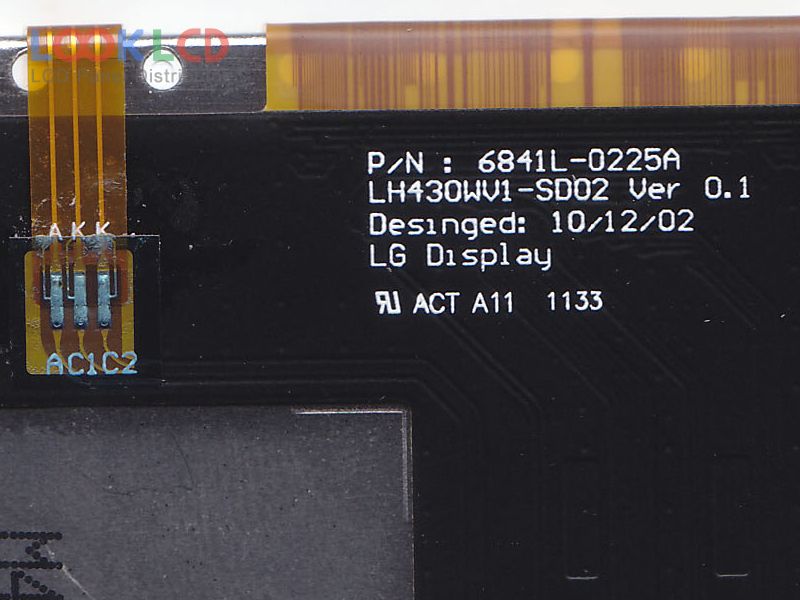

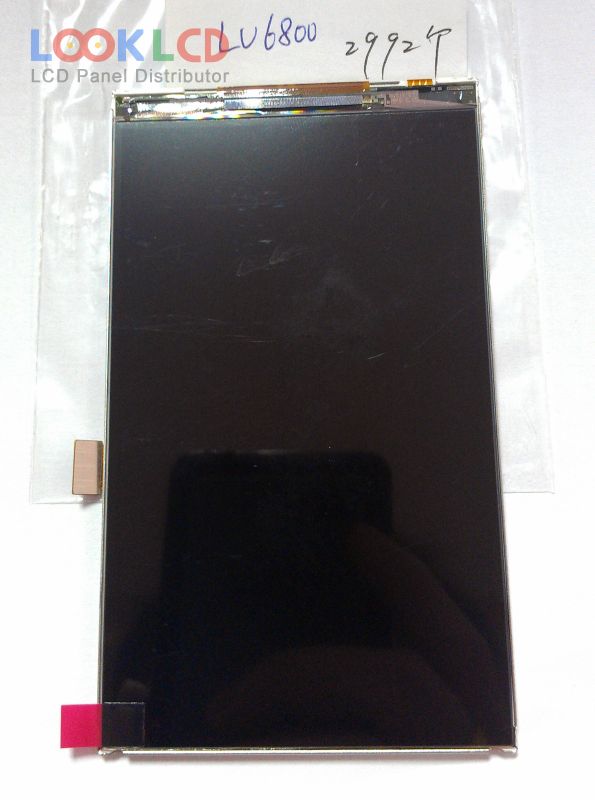

| PartNumber | LH430WV1-SD02 |
| Značka | LG Display |
| Velikost | 4.3 |
| aplikace | MPH |
| Rozlišení | 480×800 |
| Složení | LCM |
| Jas | 600 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | LG Display |
| panelový model | LH430WV1-SD02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.3 inch |
| rozlišení | 480(RGB)×800 , WVGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 56.16×93.6 mm |
| obrys | 60.06×102.87 mm |
| povrch | |
| jas | 600 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193170% |
| Doba odezvy | 40 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 5S2PWLEDWithout Driver |
| signálové rozhraní | MIPI (2 data lanes), 24 pins |
| vstupní napětí | 2.8/2.8V (Typ.)(VCC/VCI) |
| aplikace | MPH |
| 43WVF0H | SII | 4.3 | 800×480 |
| 990000475P | TPO | 4.3 | 800×480 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LB043WQ3-TD01 | LG Display | 4.3 | 480×272 |
| LH430WV1-SD01 | LG Display | 4.3 | 480×800 |
| LH430WV1-SD02 | LG Display | 4.3 | 480×800 |
| LH430WV3-SH02 | LG Display | 4.3 | 480×800 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| AMFN888 | Samsung | 3.1 | 480×800 |
| AMS465GS53 | Samsung | 4.7 | 720×1280 |
| BTL454885-W698L | BOE | 4.5 | 480×854 |
| LH240Q29-SH04 | LG Display | 2.4 | 240×320 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH467WX1-SD01 | LG Display | 4.7 | 768×1280 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| LMS245DC08 | Samsung | 2.4 | 480×360 |
| TD028STEB2 | TPO | 2.8 | 240×320 |
| TP241MC01G | Neoview Kolon | 2.4 | 240×320 |
