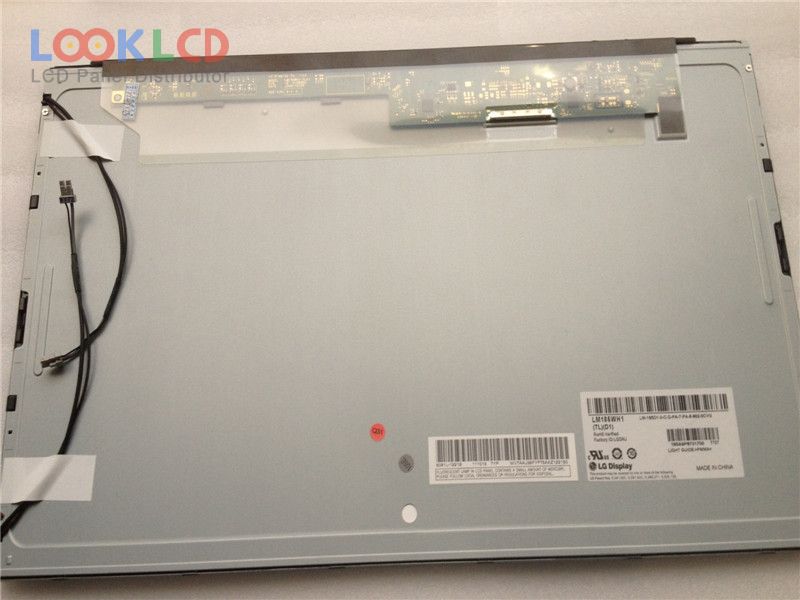

| PartNumber | LM185WH1-TLD1 |
| Značka | LG Display |
| Velikost | 18.5 |
| aplikace | DMPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LM185WH1-TLD1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 18.5 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 409.8×230.4 mm |
| povrch | |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 5 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | CCFL |
| signálové rozhraní | LVDS (2 ch, 8-bit) |
| aplikace | DMPC |
| LM185WH1-TLA1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLC5 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLD1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLD3 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLF1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLF4 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLH1 | LG Display | 18.5 | 1366×768 |
| LM185WH2-T2BB | LG Display | 18.5 | 1366×768 |
| LM185WH2-TLD1 | LG Display | 18.5 | 1366×768 |
| LM185WH2-TLE2 | LG Display | 18.5 | 1366×768 |
| LM200WD1-TLD1 | LG Display | 20.0 | 1600×900 |
| LM230WF5-TLD2 | LG Display | 23.0 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LTM150XO-L21 | Samsung | 15.0 | 1024×768 |
| M156B3-L01 | Innolux | 15.6 | 1366×768 |
| M200RW01 V0 | AUO | 20.0 | 1600×900 |
| M201EW02 VG | AUO | 20.1 | 1680×1050 |
| M240HTD01.0 | AUO | 24.0 | 1920×1080 |
| M320QAN01.0 | AUO | 32.0 | 3840×2160 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
