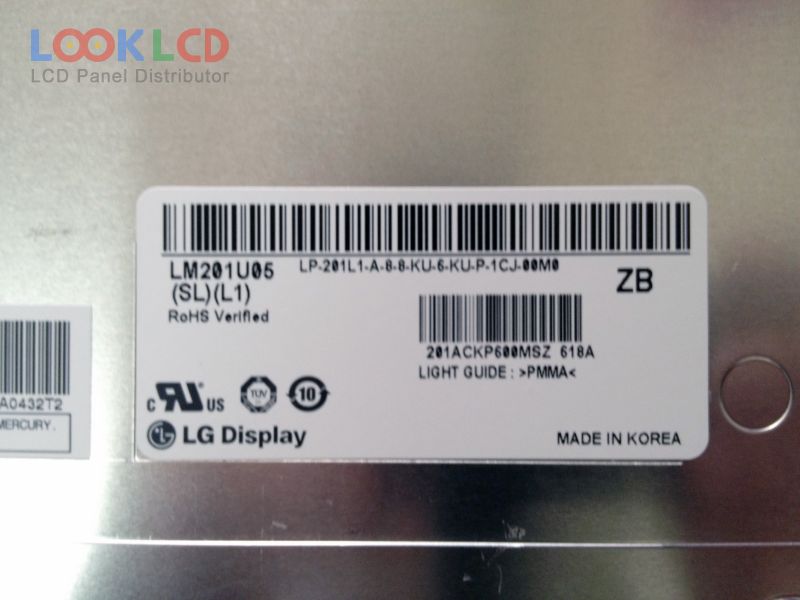

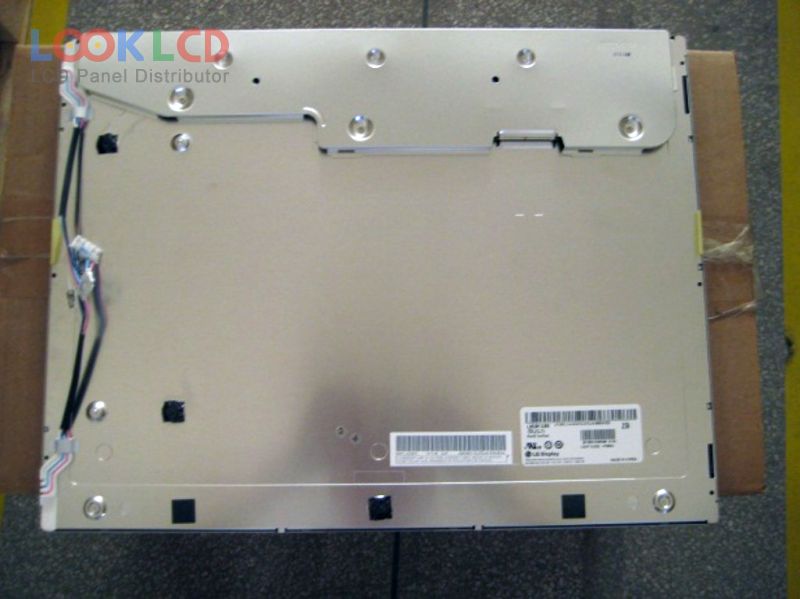

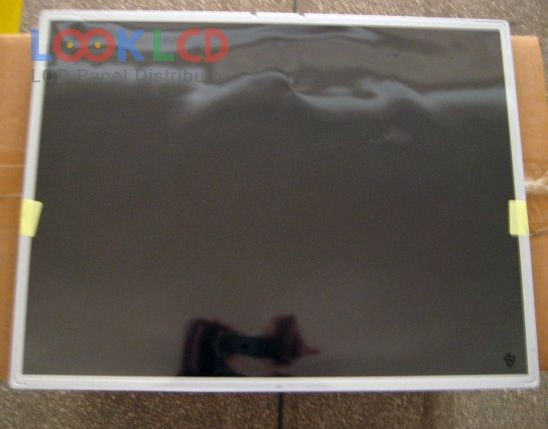

| PartNumber | LM201U05-SLL1 |
| Značka | LG Display |
| Velikost | 20.1 |
| aplikace | DMPC |
| Rozlišení | 1600×1200 |
| Složení | LCM |
| Jas | 300 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LM201U05-SLL1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 20.1 inch |
| rozlišení | 1600(RGB)×1200 , UXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 408×306 mm |
| obrys | 432×331.5×25.5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 6.5/7.5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 20.0V (Typ.) |
| aplikace | DMPC |
