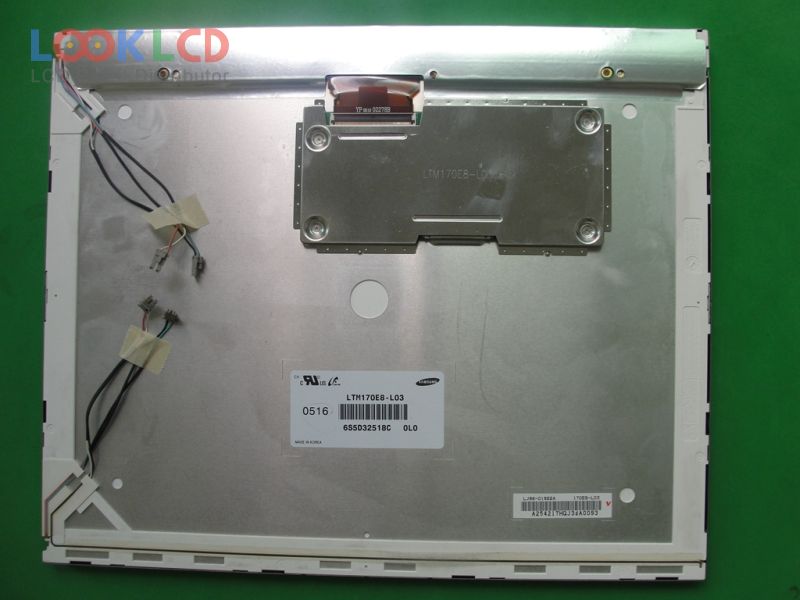

| PartNumber | LTM170E8-L03 |
| Značka | Samsung |
| Velikost | 17.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 280 |
| CR | 1500:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTM170E8-L03 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | PVA, Normally Black, Transmissive |
| aktivní oblast | 337.92×270.336 mm |
| obrys | 354.9×290.3×16.5 mm |
| povrch | Antiglare (Haze 44%), Hard coating (3H) |
| jas | 280 cd/m² (Typ.) |
| kontrastní poměr | 1500:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 14 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
