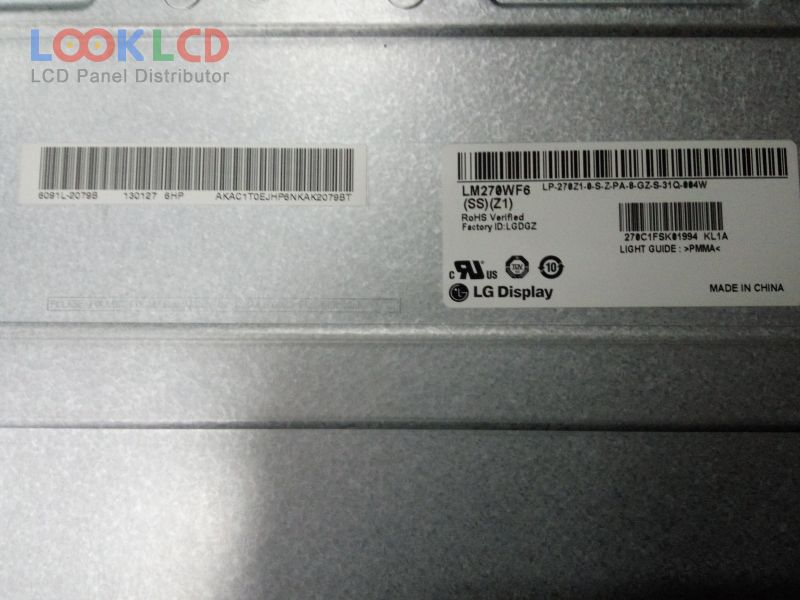

| PartNumber | LM270WF6-SSZ1 |
| Značka | LG Display |
| Velikost | 27.0 |
| aplikace | DMPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LM270WF6-SSZ1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 27.0 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 597.888×336.312 mm |
| obrys | 617.1×361.3×14.75 mm |
| povrch | Glare (Haze 0%) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 14 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 14S4PWLEDWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| LM270WF3-TLA1 | LG Display | 27.0 | 1920×1080 |
| LM270WF4-TLA1 | LG Display | 27.0 | 1920×1080 |
| LM270WF5-SLM1 | LG Display | 27.0 | 1920×1080 |
| LM270WF5-SSA1 | LG Display | 27.0 | 1920×1080 |
| LM270WQ1-SDB3 | LG Display | 27.0 | 2560×1440 |
| LM270WQ1-SDBV | LG Display | 27.0 | 2560×1440 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| LM270WQ1-SLB1 | LG Display | 27.0 | 2560×1440 |
| LM270WQ3-SLA1 | LG Display | 27.0 | 2560×1440 |
| LM270WQ3-SLB2 | LG Display | 27.0 | 2560×1440 |
| LM170E01-A4 | LG Display | 17.0 | 1280×1024 |
| LM185WH1-TLD3 | LG Display | 18.5 | 1366×768 |
| LM215WF3-SLA1 | LG Display | 21.5 | 1920×1080 |
| LM230WFA-SLZ1 | LG Display | 23.0 | 1920×1080 |
| LM240WU2-SLB1 | LG Display | 24.0 | 1920×1200 |
| LQ315D1JG03 | SHARP | 31.5 | 3840×2160 |
| M220Z1-L05 | Innolux | 22.0 | 1680×1050 |
| M240HTN01.2 | AUO | 24.0 | 1920×1080 |
| M270HHF-L10 | Innolux | 27.0 | 1920×1080 |
| MT220WW01 V.5 | Innolux | 22.0 | 1680×1050 |
