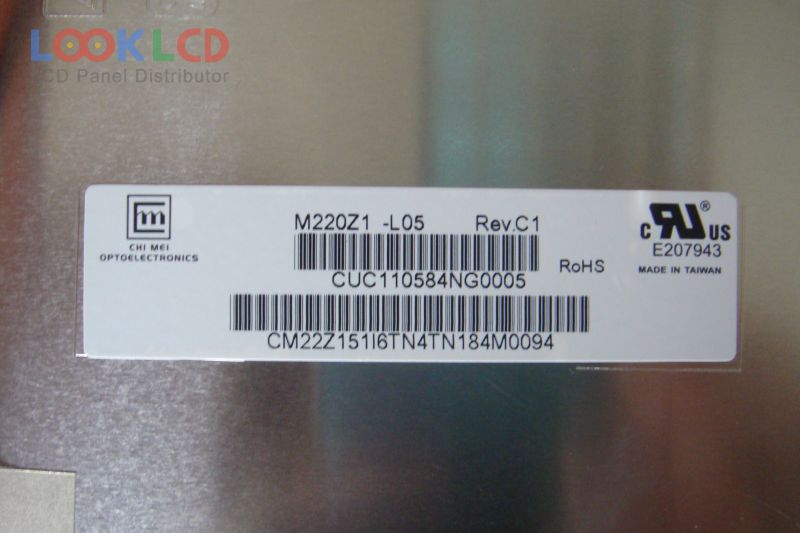

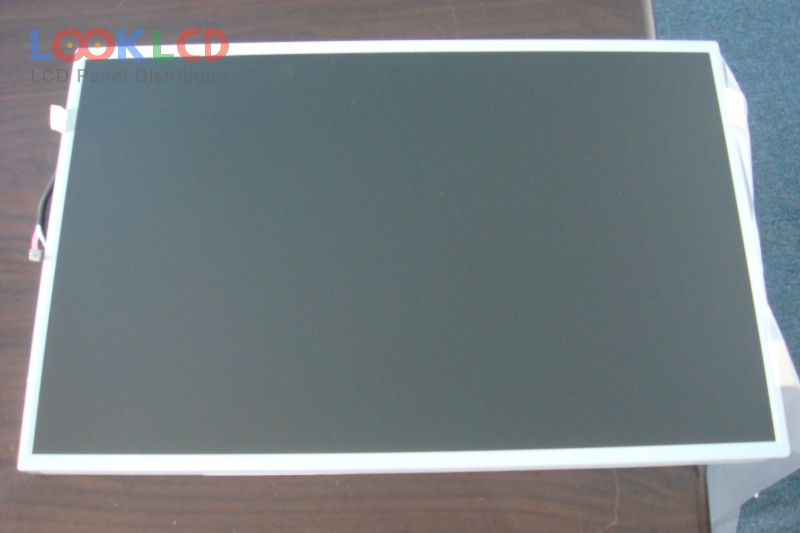

| PartNumber | M220Z1-L05 |
| Značka | Innolux |
| Velikost | 22.0 |
| aplikace | DMPC |
| Rozlišení | 1680×1050 |
| Složení | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | M220Z1-L05 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 22.0 inch |
| rozlišení | 1680(RGB)×1050 , WSXGA+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 473.76×296.1 mm |
| obrys | 493.7×320.1 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193192% |
| Doba odezvy | 1.3/3.7 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |

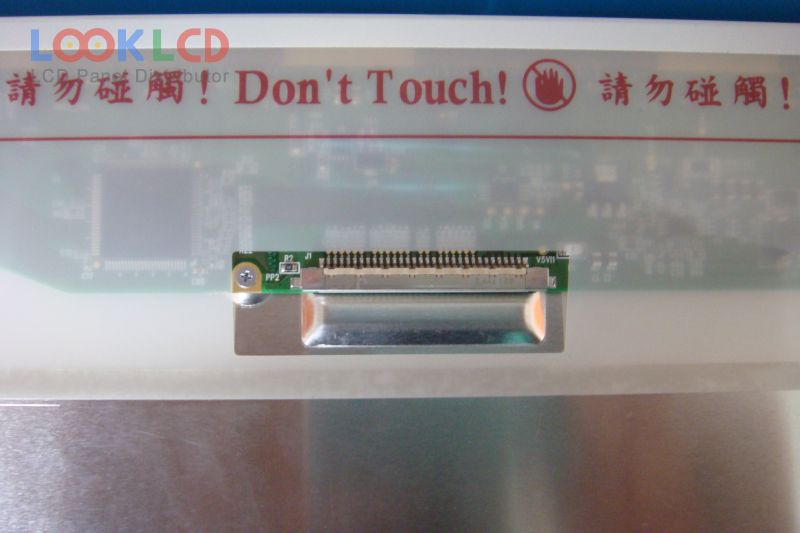

| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
