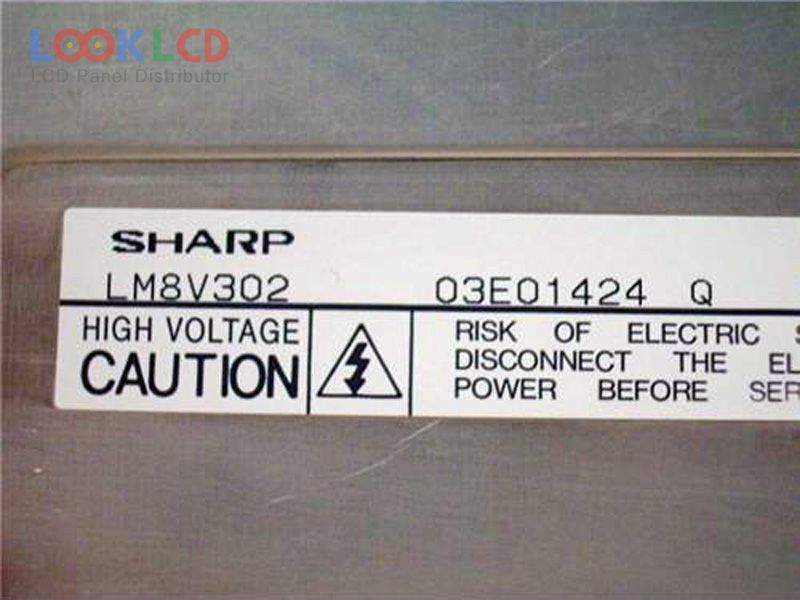

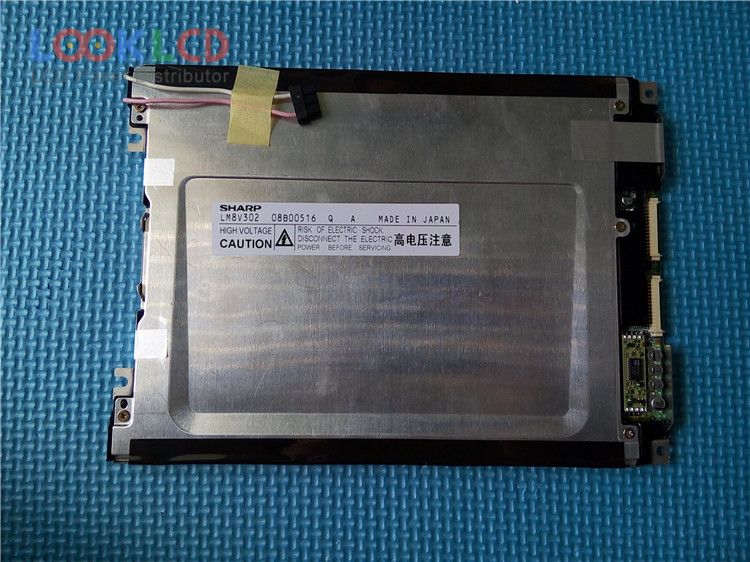

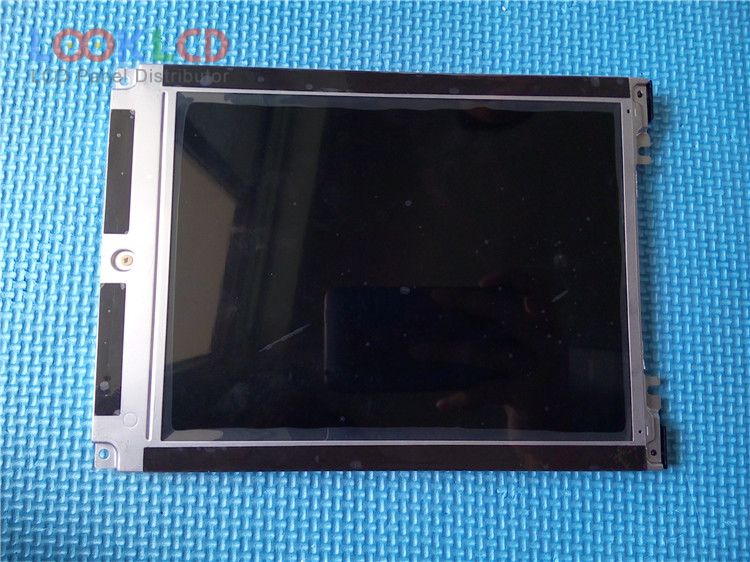

| PartNumber | LM8V302 |
| Značka | SHARP |
| Velikost | 7.7 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 120 |
| CR | 50:1 |
| Barvy | Color |
| Podsvícení | CCFL |
| Rozhraní | Parallel Data |
| značka panelu | SHARP |
| panelový model | LM8V302 |
| typ panelu | CSTN-LCD , LCM |
| velikost panelu | 7.7 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | STN, Normally Black, Transmissive |
| aktivní oblast | 157.42×118.06 mm |
| obrys | 197×142.5 mm |
| povrch | |
| jas | 120 cd/m² (Typ.) |
| kontrastní poměr | 50:1 (Typ.) |
| zobrazit barvy | Color |
| Doba odezvy | 270/80 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/50/30 (Typ.)(CR≥2)(L/R/U/D) |
| frekvence | 120Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel Data (8-bit), 29 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
