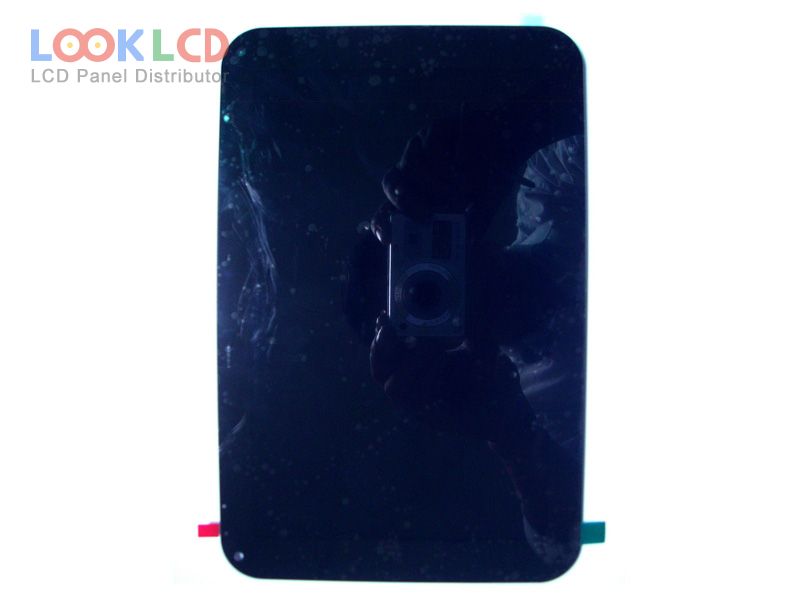

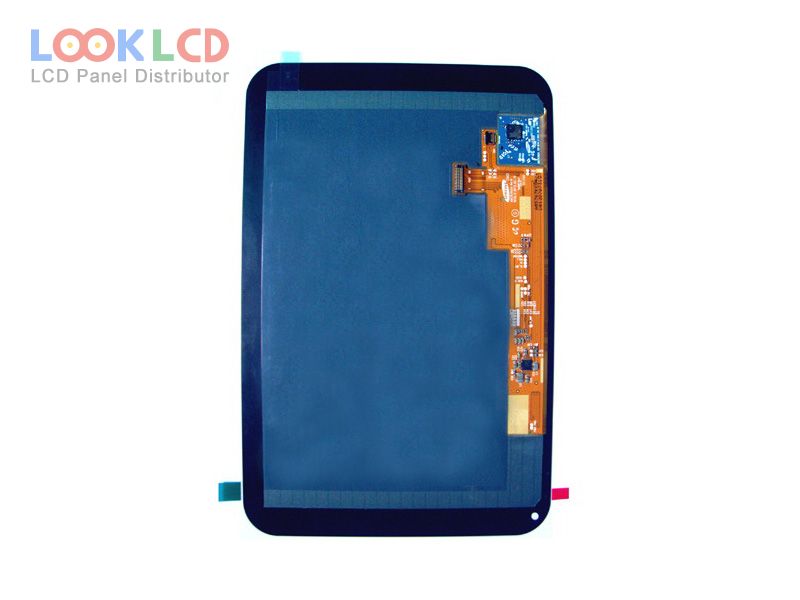

| PartNumber | AMS767KC04-1 |
| Značka | Samsung |
| Velikost | 7.7 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | Assembly |
| Jas | 250 |
| CR | 3400:1 |
| Barvy | 16.7M |
| Podsvícení | self |
| Rozhraní | MIPI |
| značka panelu | SAMSUNG |
| panelový model | AMS767KC04-1 |
| typ panelu | AM-OLED , Assembly |
| velikost panelu | 7.7 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| aktivní oblast | 165.12×103.2 mm |
| obrys | 197.7×128.4 mm |
| povrch | Anti Fingerprint |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 3400 : 1 (Min.) |
| zobrazit barvy | 16.7M (8-bit), CIE1931110% |
| úhel pohledu | 88/88/88/88 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | MIPI (4 data lanes), 44 pins |
| vstupní napětí | 6.3/1.8/3.0/5.8V (VDCDC/VDD3/VCI/VLIN1) |
| aplikace | PAD |
