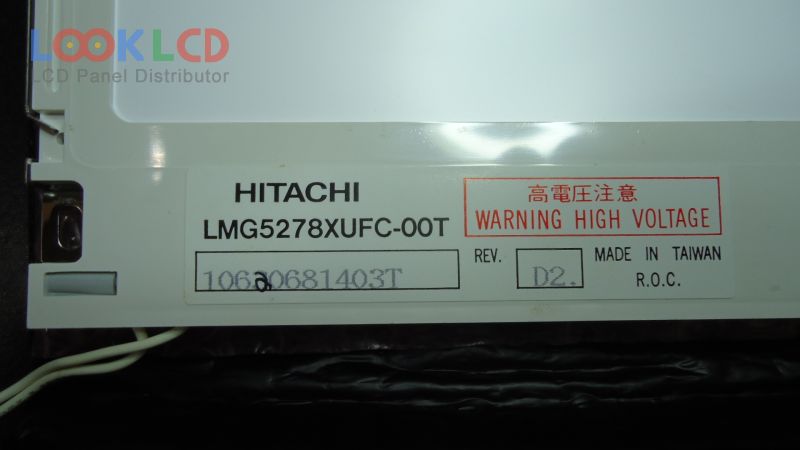

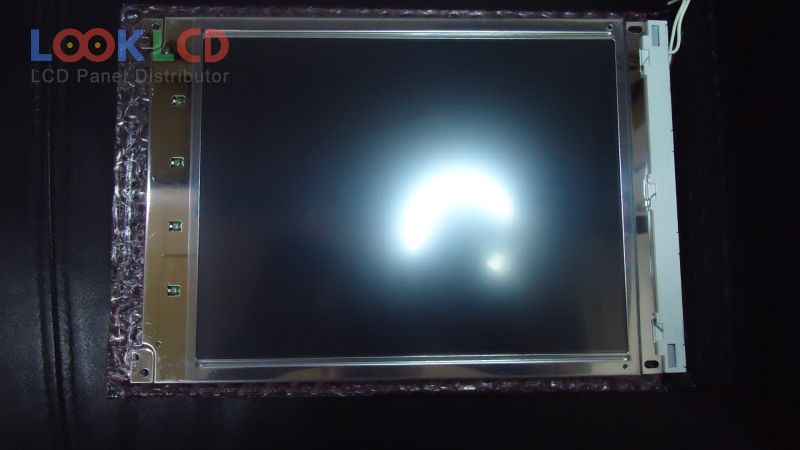

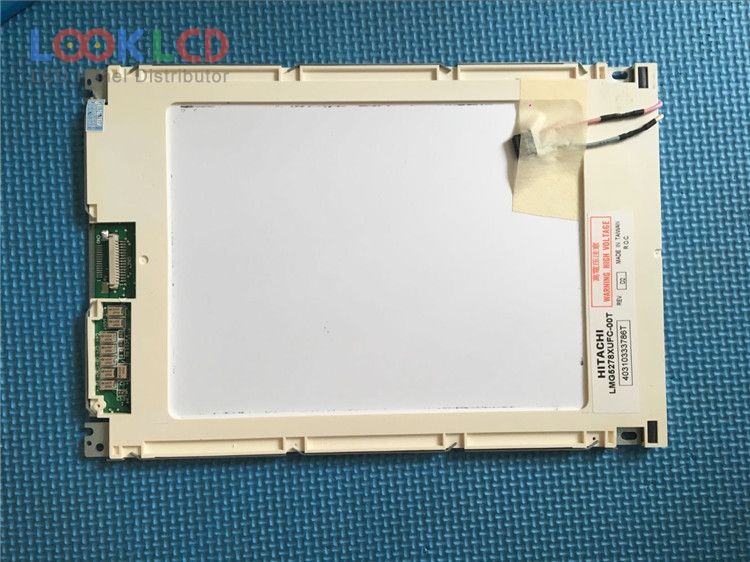

| PartNumber | LMG5278XUFC-00T |
| Značka | KOE |
| Velikost | 9.4 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 60 |
| CR | 18:1 |
| Barvy | Monochrome |
| Podsvícení | CCFL |
| Rozhraní | Parallel Data |
| značka panelu | HITACHI |
| panelový model | LMG5278XUFC-00T |
| typ panelu | FSTN-LCD , LCM |
| velikost panelu | 9.4 inch |
| rozlišení | 640×480 , VGA |
| zobrazovací mód | STN, Black/White (Negative), Transmissive |
| aktivní oblast | 191.97×143.97 mm |
| obrys | 257.5×174×7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 60 cd/m² (Typ.) |
| kontrastní poměr | 18:1 (Typ.) |
| zobrazit barvy | Monochrome |
| Doba odezvy | 160/110 (Typ.)(Tr/Td) |
| úhel pohledu | |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel Data (4-bit), 15 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VDD) |
| aplikace | IA |
