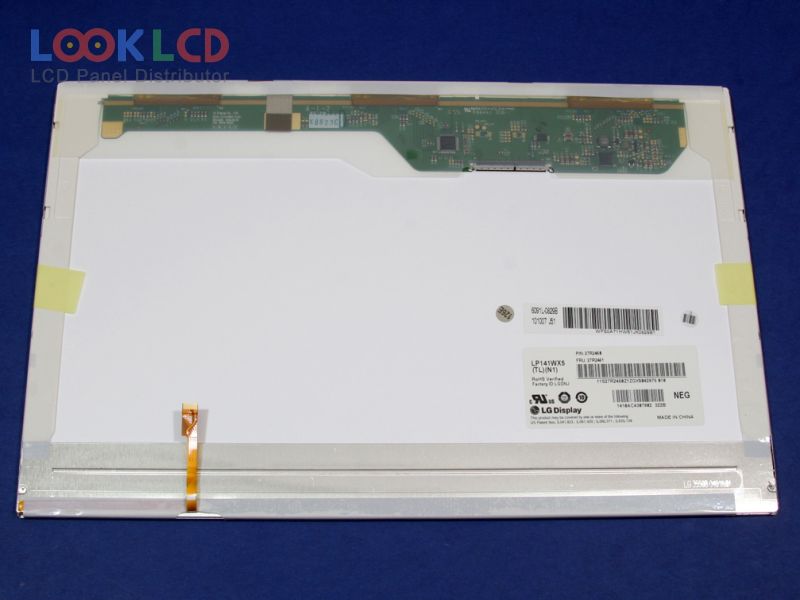

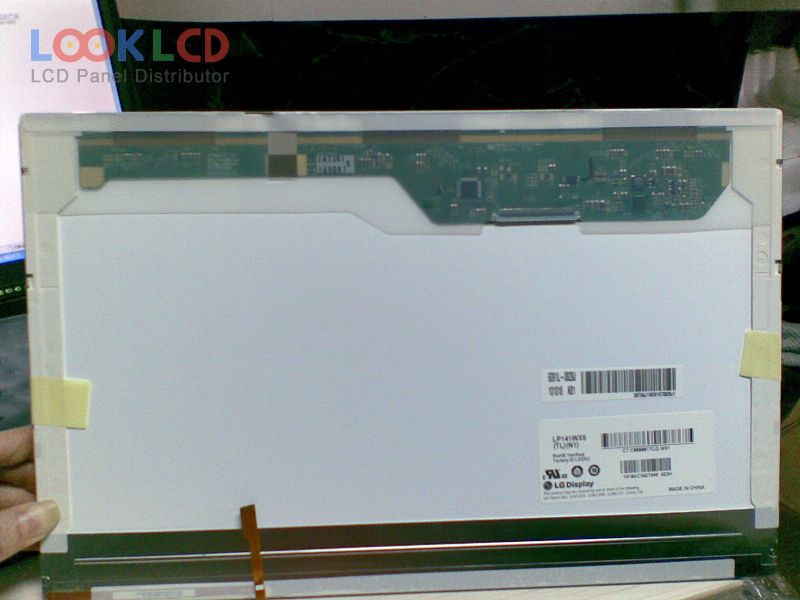

| PartNumber | LP141WX5-TLN1 |
| Značka | LG Display |
| Velikost | 14.1 |
| aplikace | NBPC |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | LG Display |
| panelový model | LP141WX5-TLN1 2 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 14.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 303.74×189.84 mm |
| obrys | 319.5×205.5×5.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S6PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
