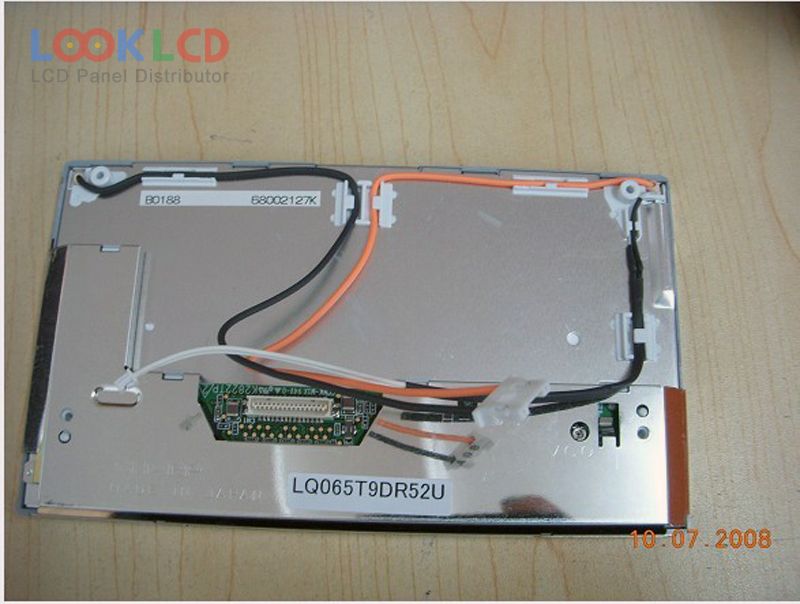

| PartNumber | LQ065T9DR52U |
| Značka | SHARP |
| Velikost | 6.5 |
| aplikace | CNS |
| Rozlišení | 400×240 |
| Složení | LCM |
| Jas | 220 |
| CR | 60:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ065T9DR52U |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 400(RGB)×240 , WQVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 143.4×79.326 mm |
| obrys | 155×89.2 mm |
| povrch | Antiglare, Antireflection |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 60:1 (Min.)(Transmissive)5:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 10/25 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/40/45 (Typ.)(CR≥5)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 31 pins |
| vstupní napětí | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| aplikace | CNS |
