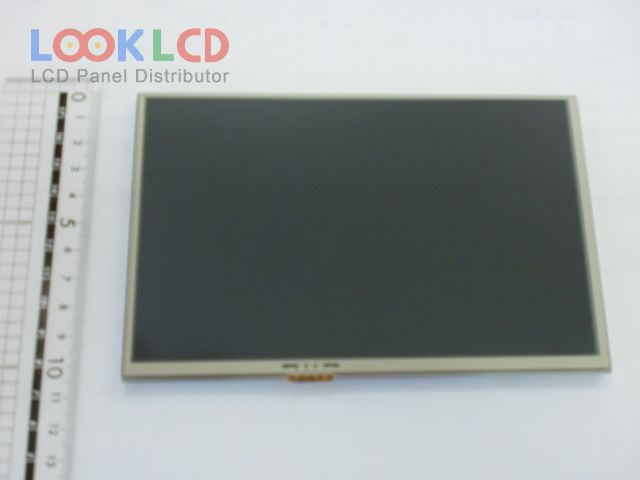

| PartNumber | LQ070Y3DG02 |
| Značka | SHARP |
| Velikost | 7.0 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 280 |
| CR | 450:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ070Y3DG02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800×480(RGB) , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 164.9×104×5.3 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 280 cd/m² (Typ.) |
| kontrastní poměr | 450:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193148% |
| Doba odezvy | 35 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 8S3PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 8-bit), 51 pins |
| vstupní napětí | 1.8/2.85V (Typ.)(VDDIO/VCI) |
| aplikace | DPF |
