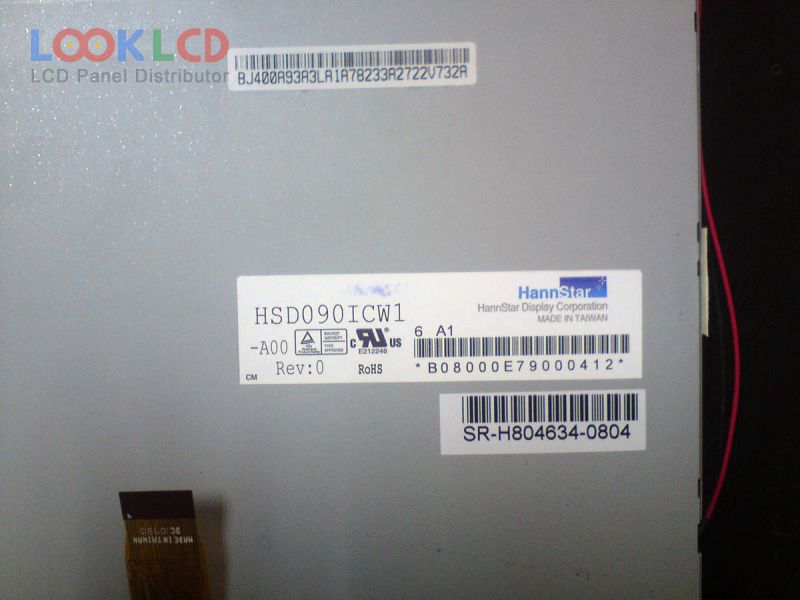

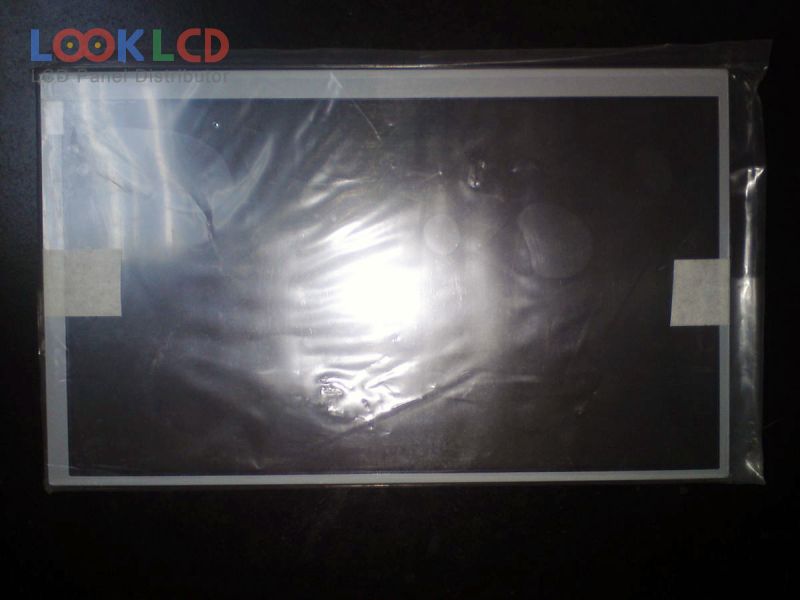

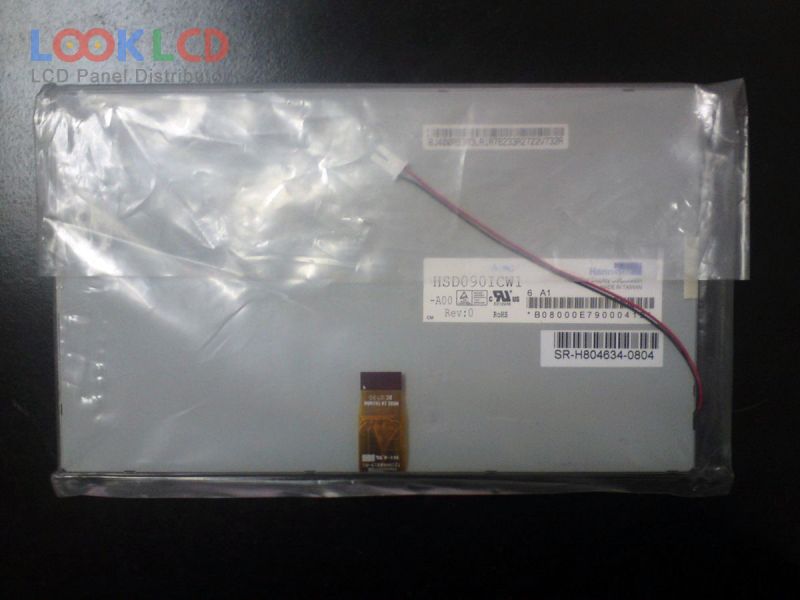

| PartNumber | HSD090ICW1-A00 |
| Značka | HannStar |
| Velikost | 9.0 |
| aplikace | DPF |
| Rozlišení | 640×234 |
| Složení | LCM |
| Jas | 250 |
| CR | 500:1 |
| Barvy | |
| Podsvícení | WLED |
| Rozhraní | Analog |
| značka panelu | HannStar |
| panelový model | HSD090ICW1-A00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 9.0 inch |
| rozlišení | 640(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 197.76×111.735 mm |
| obrys | 210.7×126.4×4.25 mm |
| povrch | |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | , CIE193145% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 3S8PWLEDWithout Driver |
| signálové rozhraní | TFT Specific Analog RGB, 26 pins |
| vstupní napětí | 3.3/5/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | DPF |
