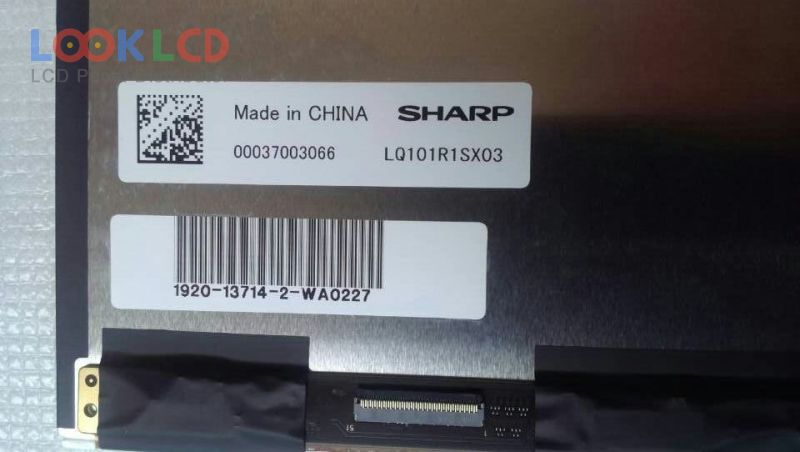

| PartNumber | LQ101R1SX03 |
| Značka | SHARP |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 2560×1600 |
| Složení | LCM |
| Jas | 400 |
| CR | 900:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | MIPI |
| značka panelu | SHARP |
| panelový model | LQ101R1SX03 |
| typ panelu | IGZO TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 2560(RGB)×1600 , WQXGA |
| zobrazovací mód | Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 228.2×148.6×4.45 mm |
| povrch | Clear, Hard coating |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 7S6PWLEDWithout Driver |
| signálové rozhraní | MIPI (2 ch, 4 data lanes), 51 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
