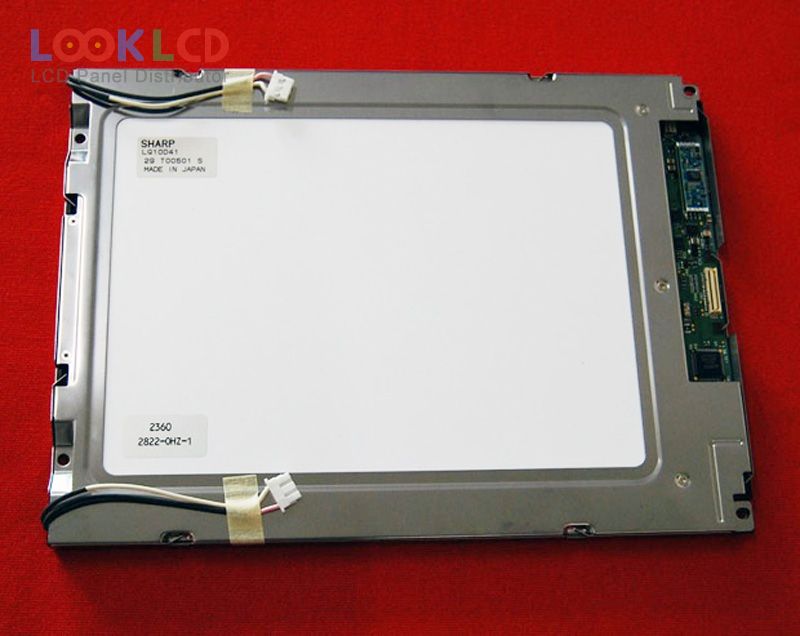

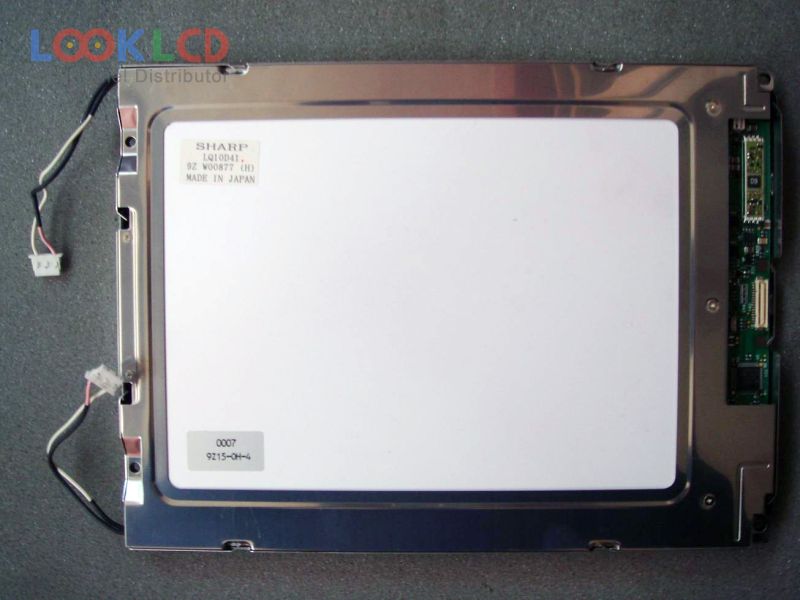

| PartNumber | LQ10D41 |
| Značka | SHARP |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 200 |
| CR | |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | SHARP |
| panelový model | LQ10D41 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.2×158.4 mm |
| povrch | |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | |
| úhel pohledu | |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 31 pins |
| rohs: | |
| aplikace | IA |
