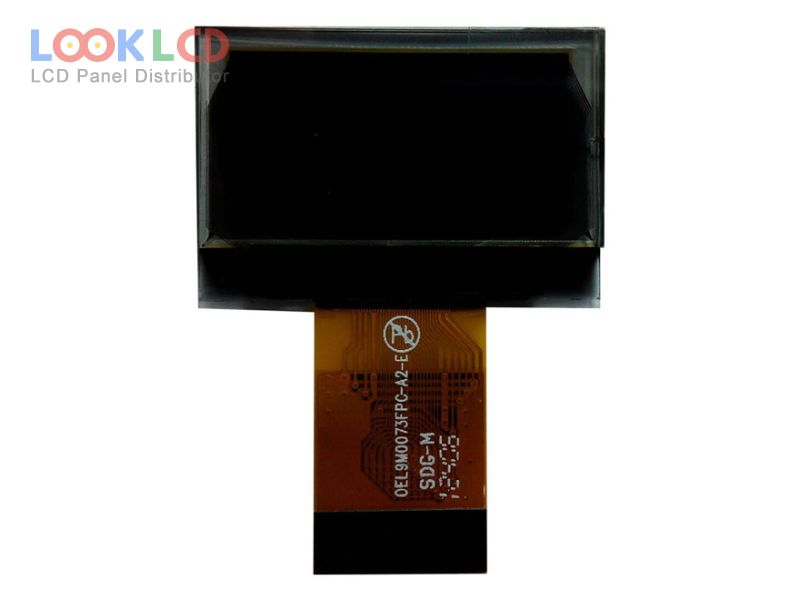

| PartNumber | OEL9M0073-G-E |
| Značka | Other |
| Velikost | 1.0 |
| aplikace | IA |
| Rozlišení | 128×64 |
| Složení | OLED |
| Jas | |
| CR | 10000:1 |
| Barvy | Mono(Green) |
| Podsvícení | self |
| Rozhraní | CPU/SPI/I²C |
| značka panelu | TRULY |
| panelový model | OEL9M0073-G-E |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.0 inch |
| rozlišení | 128×64 |
| aktivní oblast | 23.02×11.82 mm |
| obrys | 30×20.16×1.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | Mono(Green) (1-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| řidič ic | COG Built-in SSD1308Z |
| signálové rozhraní | CPU/SPI/I²C, 24 pins |
| aplikace | IA |
