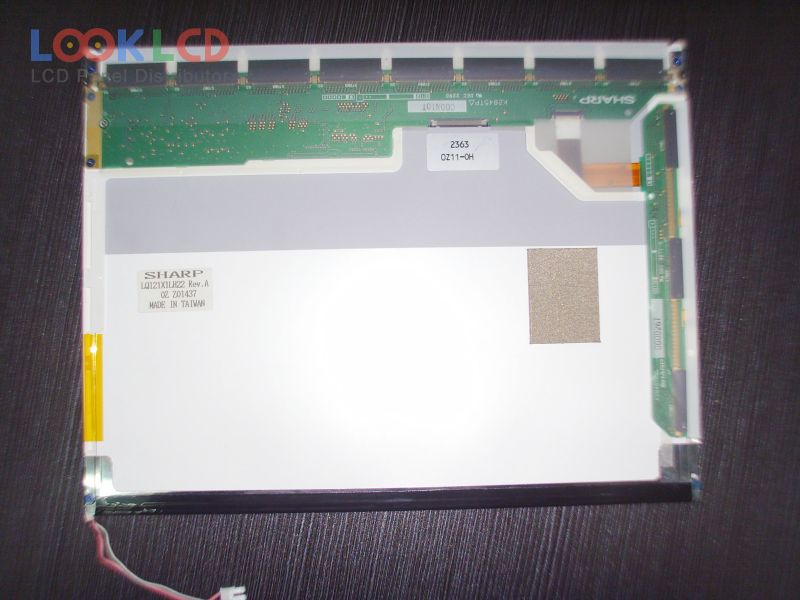

| PartNumber | LQ121X1LH22 |
| Značka | SHARP |
| Velikost | 12.1 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 160 |
| CR | 300:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LQ121X1LH22 6 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 245.76×184.32 mm |
| obrys | 261×199×5.5 mm |
| povrch | Antiglare, Hard coating (2H), Reflection 5.0% (Max.) |
| jas | 160 cd/m² (Typ.) |
| kontrastní poměr | 300:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 15/30 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LQ121S1DG11 | SHARP | 12.1 | 800×600 |
| LQ121S1DG21 | SHARP | 12.1 | 800×600 |
| LQ121S1DG41 | SHARP | 12.1 | 800×600 |
| LQ121S1LG41 | SHARP | 12.1 | 800×600 |
| LQ121S1LG44 | SHARP | 12.1 | 800×600 |
| LQ121S1LG74A | SHARP | 12.1 | 800×600 |
| LQ121S1LG75 | SHARP | 12.1 | 800×600 |
| LQ121S1LG79 | SHARP | 12.1 | 800×600 |
| LQ121S1LG81 | SHARP | 12.1 | 800×600 |
| B133XW01 V1 | AUO | 13.3 | 1366×768 |
| B133XW04 V0 | AUO | 13.3 | 1366×768 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP171WP4-TLP1 | LG Display | 17.1 | 1440×900 |
| LTD133EV2F | TOSHIBA | 13.3 | 1280×800 |
| LTN133AT25-501 | Samsung | 13.3 | 1366×768 |
| LTN160AT03-001 | Samsung | 16.0 | 1366×768 |
| LTN170BT08-G01 | Samsung | 17.0 | 1440×900 |
| LTN173KT01-W04 | Samsung | 17.3 | 1600×900 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
