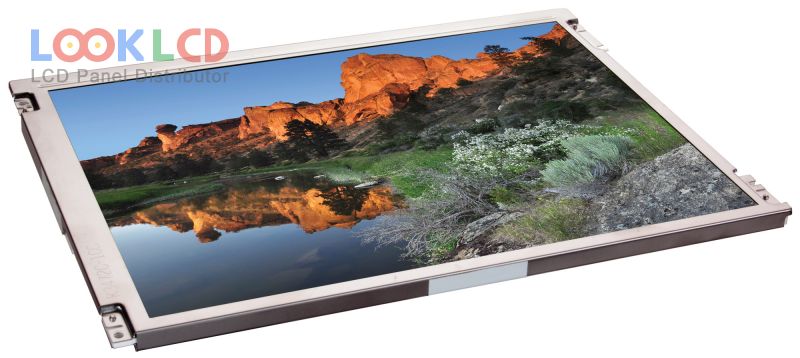

| PartNumber | LQ121S1LG81 |
| Značka | SHARP |
| Velikost | 12.1 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 450 |
| CR | 800:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | SHARP |
| panelový model | LQ121S1LG81 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 246×184.5 mm |
| obrys | 276×209×9.6 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| LQ121K1LG53 | SHARP | 12.1 | 1280×800 |
| LQ121S1DG31 | SHARP | 12.1 | 800×600 |
| LQ121S1DG41 | SHARP | 12.1 | 800×600 |
| LQ121S1LG44 | SHARP | 12.1 | 800×600 |
| LQ121S1LG45 | SHARP | 12.1 | 800×600 |
| LQ121S1LG55 | SHARP | 12.1 | 800×600 |
| LQ121S1LG73 | SHARP | 12.1 | 800×600 |
| LQ121S1LG75 | SHARP | 12.1 | 800×600 |
| LQ121X1LH73 | SHARP | 12.1 | 1024×768 |
| LQ121X1LH83 | SHARP | 12.1 | 1024×768 |
| AA121SL09 | Mitsubishi | 12.1 | 800×600 |
| AA121TH11-DE1 | Mitsubishi | 12.1 | 1280×800 |
| EL640.480-A4 SBS | PLANAR | 10.4 | 640×480 |
| G215HVN01.0 S11 | AUO | 21.5 | 1920×1080 |
| KCG057QV1DB-G760 | Kyocera | 5.7 | 320×240 |
| KS3224ASTT-FW-X20 | Kyocera | 5.7 | 320×240 |
| LTA121B860F | TOSHIBA | 12.1 | 800×600 |
| NL8060BC31-20 | NLT | 12.1 | 800×600 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| PM070WX9 | E Ink | 7.0 | 800×480 |
