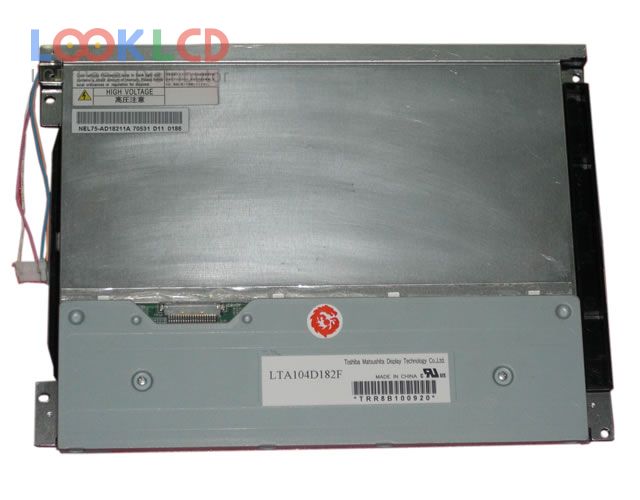

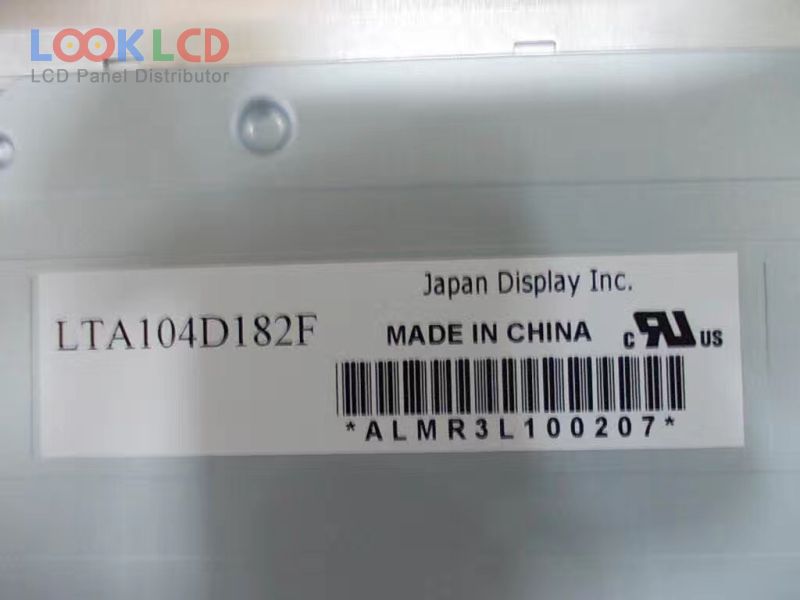

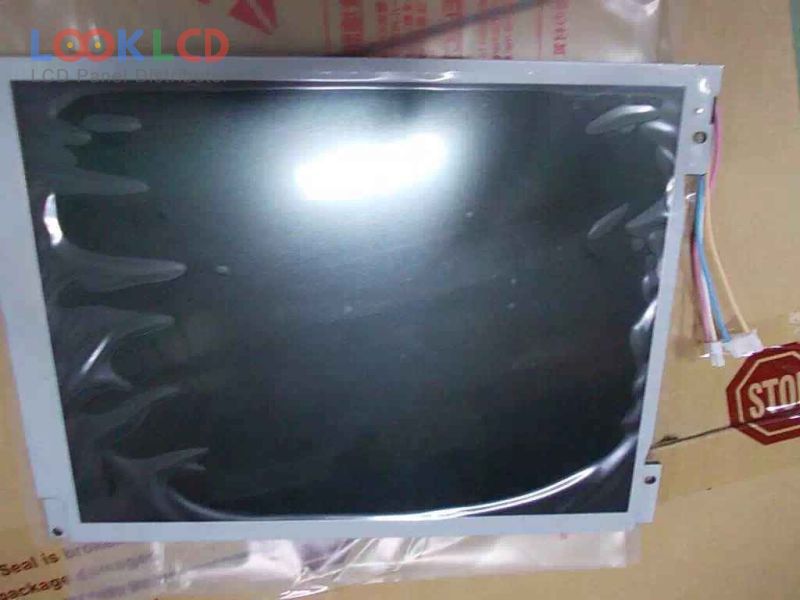

| PartNumber | LTA104D182F |
| Značka | TOSHIBA |
| Velikost | 10.4 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 400 |
| CR | 450:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | Toshiba Matsushita |
| panelový model | LTA104D182F |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 211.2×158.4 mm |
| obrys | 242×178.5 mm |
| povrch | |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 450:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 8/17 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
