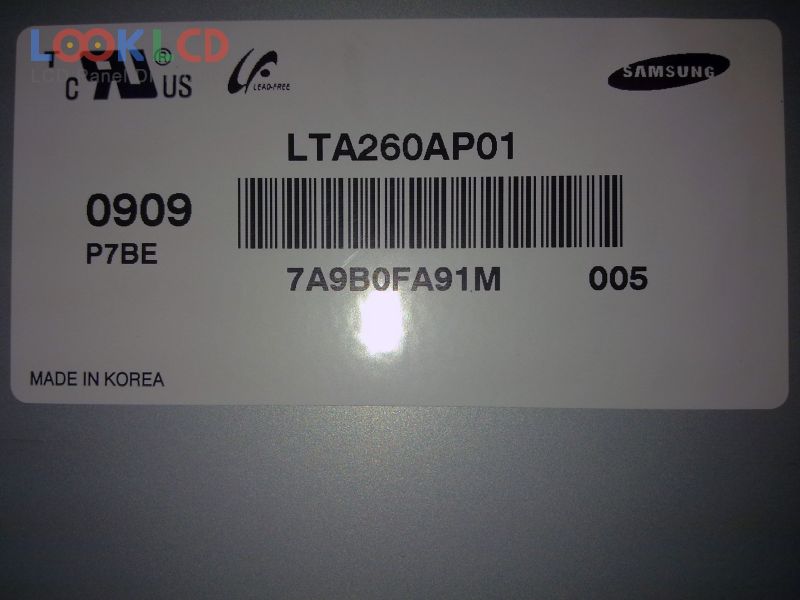

| PartNumber | LTA260AP01 |
| Značka | Samsung |
| Velikost | 26.0 |
| aplikace | LCTV |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 450 |
| CR | 2000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTA260AP01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 26.0 inch |
| rozlišení | 1366×768(RGB) , WXGA |
| zobrazovací mód | APVA, Normally Black, Transmissive |
| aktivní oblast | 575.769×323.712 mm |
| obrys | 626×373×50 mm |
| povrch | Antiglare (Haze 14%), Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 2000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 8 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5 pcsCCFLEmbedded (Inverter) |
| signálové rozhraní | LVDS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | LCTV |
