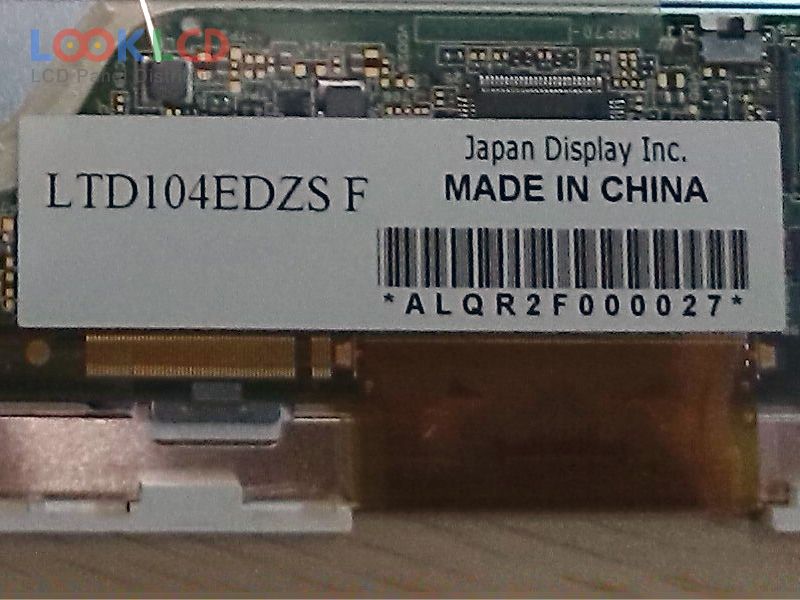

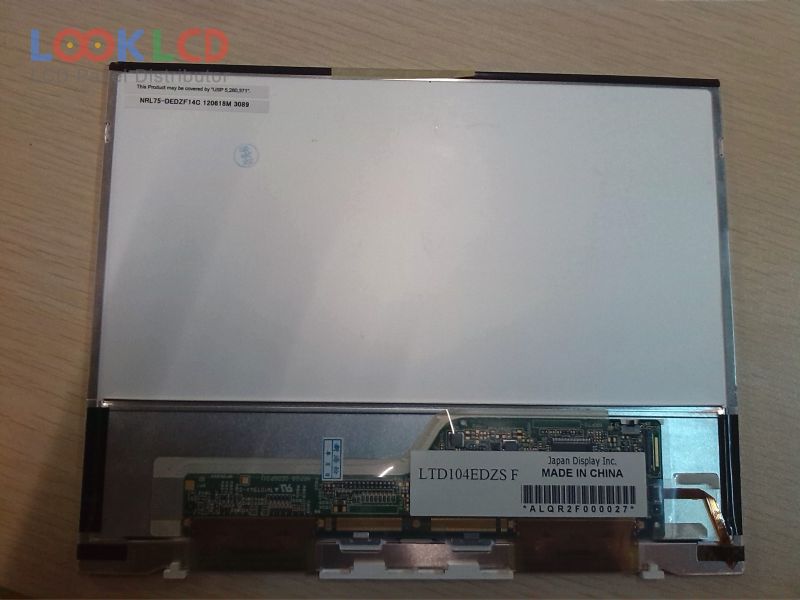

| PartNumber | LTD104EDZS |
| Značka | TOSHIBA |
| Velikost | 10.4 |
| aplikace | NBPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 245 |
| CR | 250:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | Toshiba Matsushita |
| panelový model | LTD104EDZS |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 10.4 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 210.4×157.8 mm |
| obrys | 219.1×173.8×6.3 mm |
| povrch | Antiglare |
| jas | 245 cd/m² (Typ.) |
| kontrastní poměr | 250:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 40/40 (Max.)(Tr/Td) |
| úhel pohledu | |
| typ lampy | 9S4PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6-bit), 25 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | NBPC |
