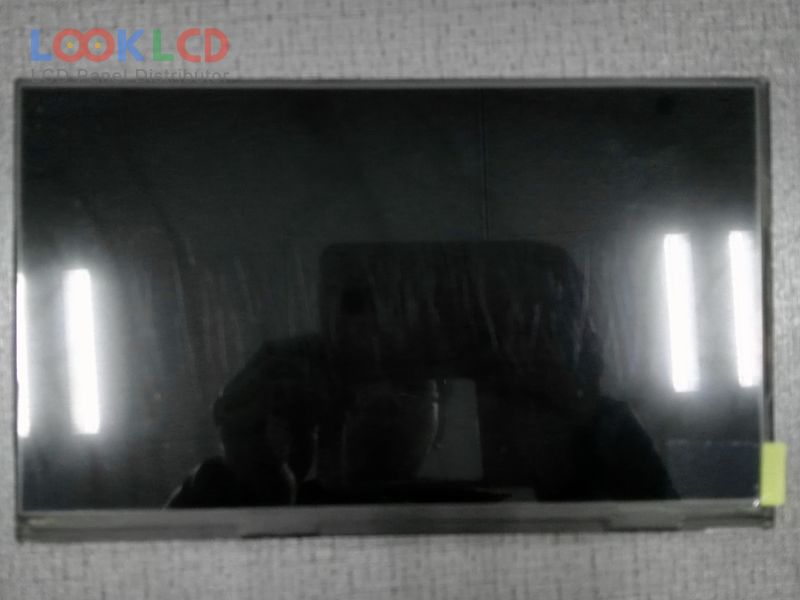

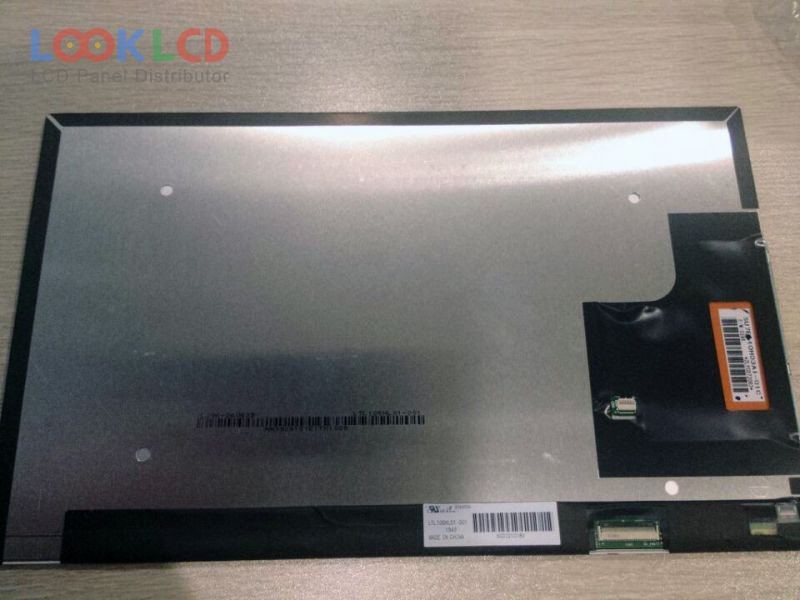

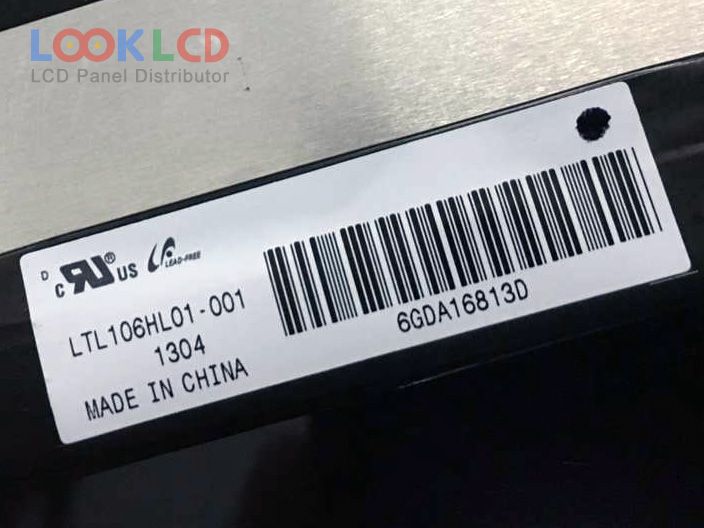

| PartNumber | LTL106HL01-001 |
| Značka | Samsung |
| Velikost | 10.6 |
| aplikace | PAD |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 400 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTL106HL01-001 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.6 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | PLS, Normally Black, Transmissive |
| aktivní oblast | 234.72×132.03 mm |
| obrys | 246.52×149.02×5.2 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193150% |
| Doba odezvy | 16 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S4PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 51 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
