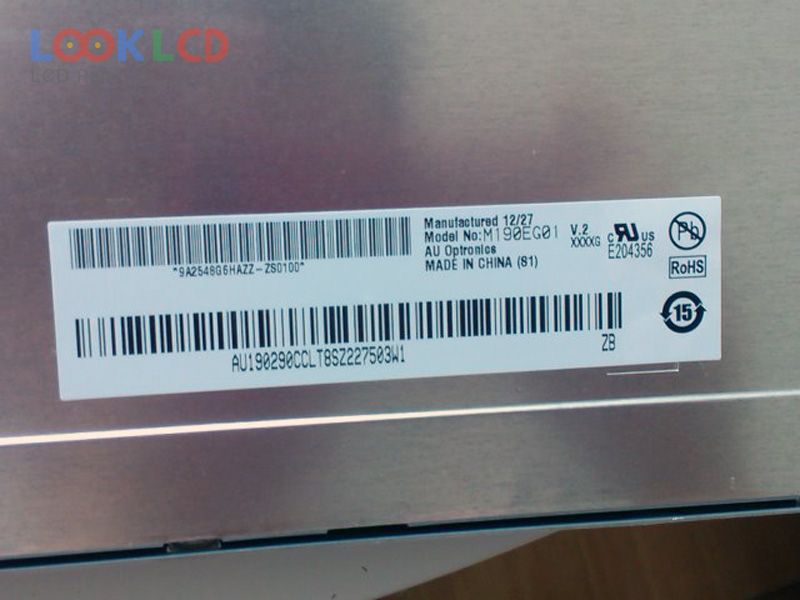

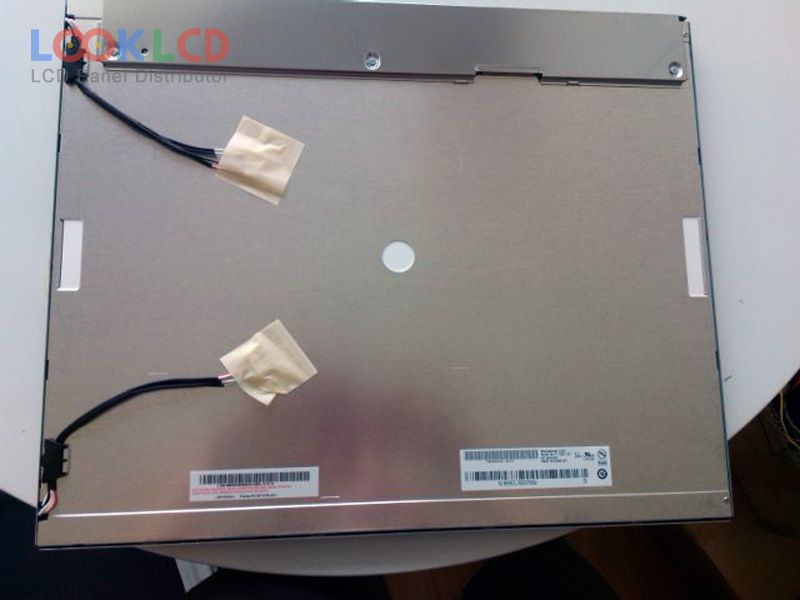

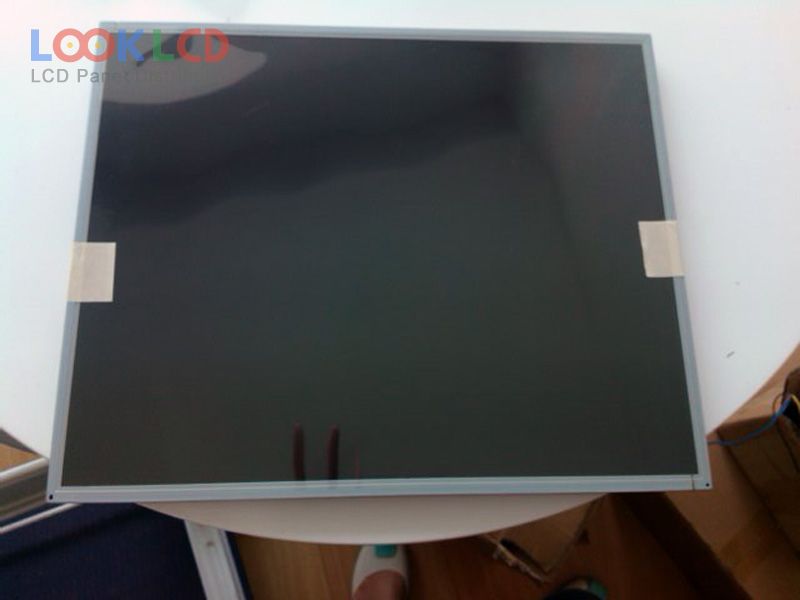

| PartNumber | M190EG01 V2 |
| Značka | AUO |
| Velikost | 19.0 |
| aplikace | IA |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 300 |
| CR | 2000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | M190EG01 V2 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 19.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | MVA, Normally Black, Transmissive |
| aktivní oblast | 376.32×301.056 mm |
| obrys | 396×324×17.53 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 2000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC) |
| Doba odezvy | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | IA |
