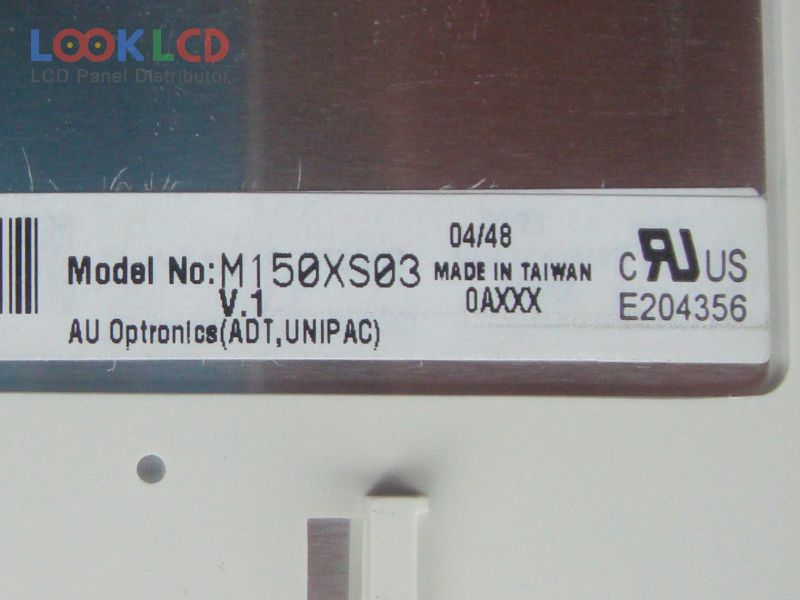

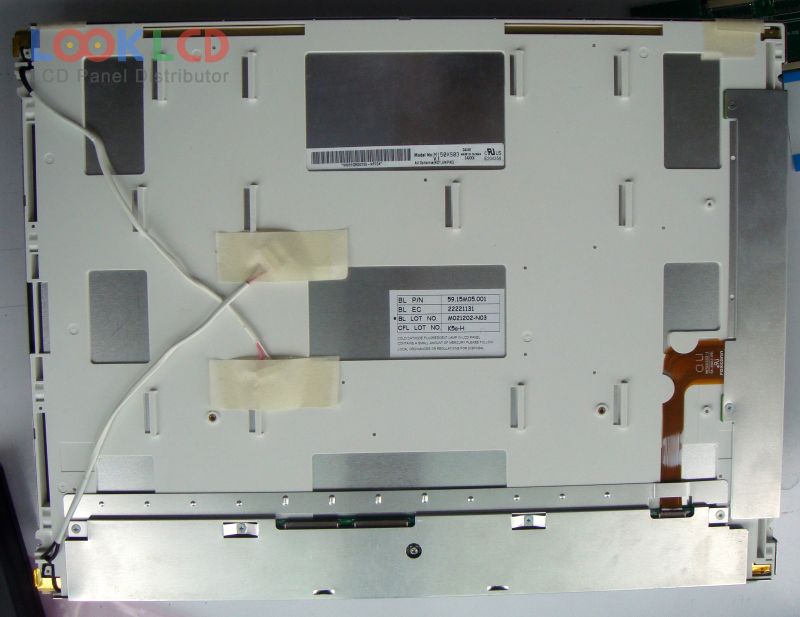

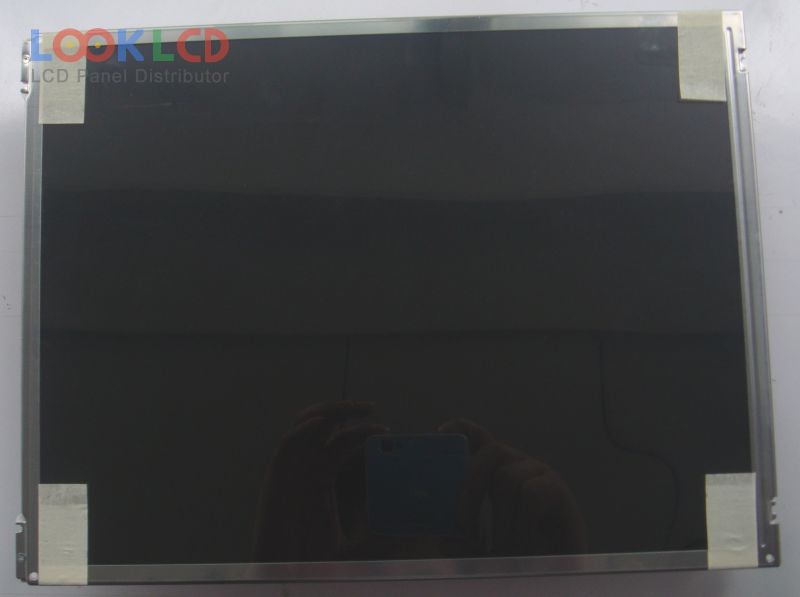

| PartNumber | M150XS03 V1 |
| Značka | AUO |
| Velikost | 15.0 |
| aplikace | DMPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 240 |
| CR | 350:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | AU Optronics |
| panelový model | M150XS03 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 331.3×249×12.1 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 240 cd/m² (Typ.) |
| kontrastní poměr | 350:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193160% |
| Doba odezvy | 8/22 (Typ.)(Tr/Td) |
| úhel pohledu | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | TTL (2 ch, 6-bit), 80 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | DMPC |
