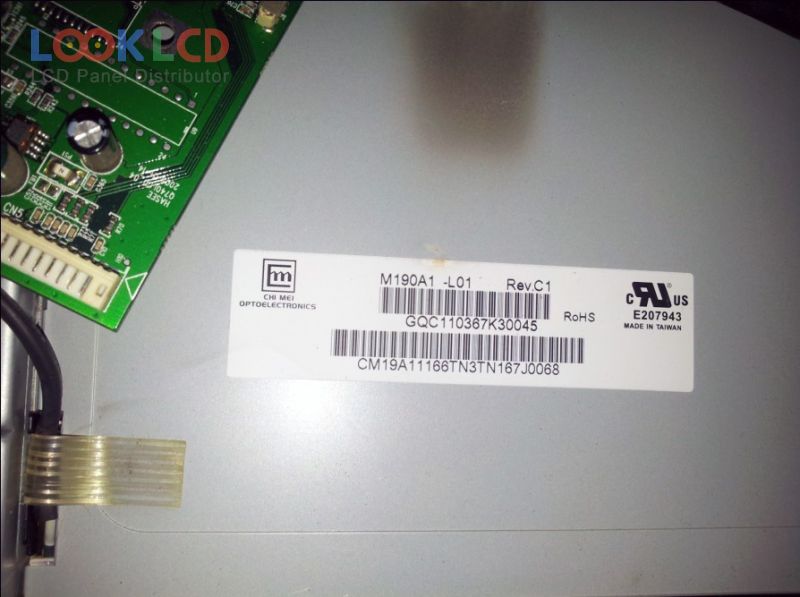

| PartNumber | M190A1-L01 |
| Značka | Innolux |
| Velikost | 19.0 |
| aplikace | DMPC |
| Rozlišení | 1440×900 |
| Složení | LCM |
| Jas | 300 |
| CR | 500:1 |
| Barvy | 16.2M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | M190A1-L01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 19.0 inch |
| rozlišení | 1440(RGB)×900 , WXGA+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 410.4×256.5 mm |
| obrys | 427.2×277.4×17.5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 2/6 (Typ.)(Tr/Td) |
| úhel pohledu | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
