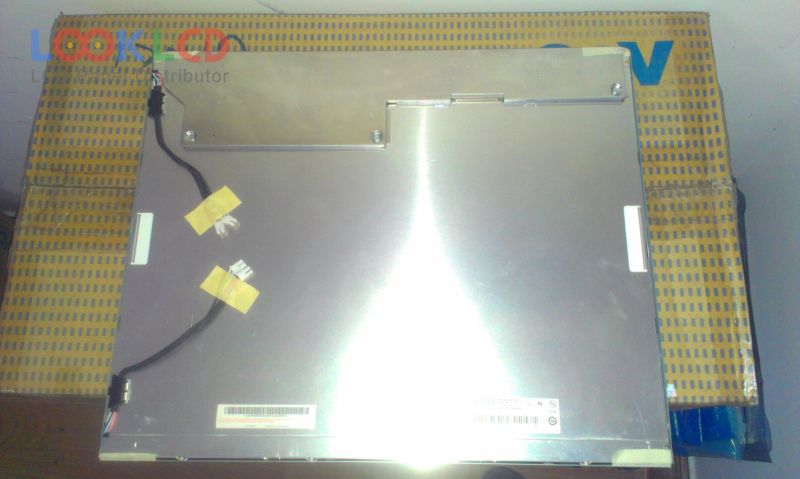

| PartNumber | M190EG02 V7 |
| Značka | AUO |
| Velikost | 19.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | M190EG02 V7 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 19.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 376.32×301.056 mm |
| obrys | 396×324×16.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 3.6/1.4 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| M190E5-L0G | Innolux | 19.0 | 1280×1024 |
| M190EG01 V2 | AUO | 19.0 | 1280×1024 |
| M190EG01 V3 | AUO | 19.0 | 1280×1024 |
| M190EG02 V7 | AUO | 19.0 | 1280×1024 |
| M190EG02 V9 | AUO | 19.0 | 1280×1024 |
| M190EN01 V1 | AUO | 19.0 | 1280×1024 |
| M190EN03 V2 | AUO | 19.0 | 1280×1024 |
| M190EN04 V1 | AUO | 19.0 | 1280×1024 |
| M190EN04 V5 | AUO | 19.0 | 1280×1024 |
| M190ETN01.0 | AUO | 19.0 | 1280×1024 |
| LM215WF1-TLA1 | LG Display | 21.5 | 1920×1080 |
| LM215WF3-SLN1 | LG Display | 21.5 | 1920×1080 |
| LM230WF5-TLH1 | LG Display | 23.0 | 1920×1080 |
| LM270WF5-SLA1 | LG Display | 27.0 | 1920×1080 |
| LTM150XH-L01 | Samsung | 15.0 | 1024×768 |
| LTM170EI-A01 | Samsung | 17.0 | 1280×1024 |
| LTM184HL01 | Samsung | 18.4 | 1920×1080 |
| LTM240CS09 | Samsung | 24.0 | 1920×1200 |
| M190PW01 V6 | AUO | 19.0 | 1440×900 |
| MT185WHM-N20 | BOE | 18.5 | 1366×768 |
