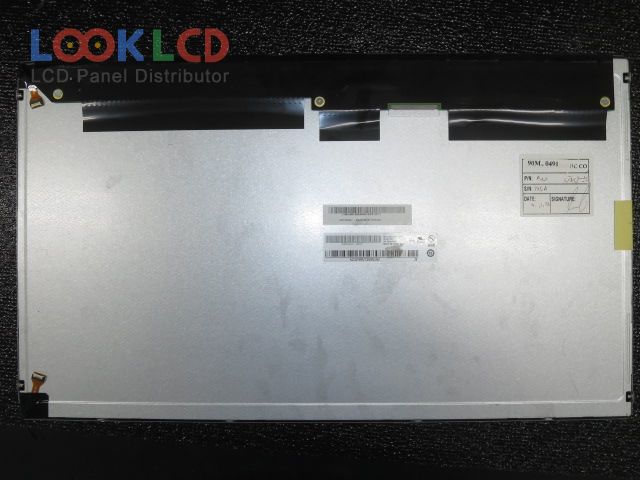

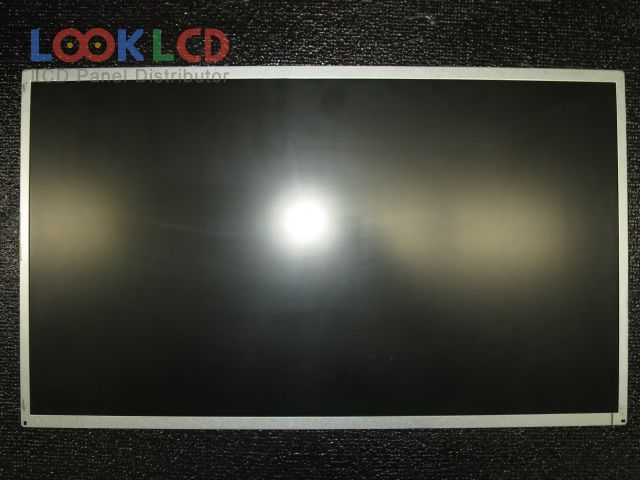

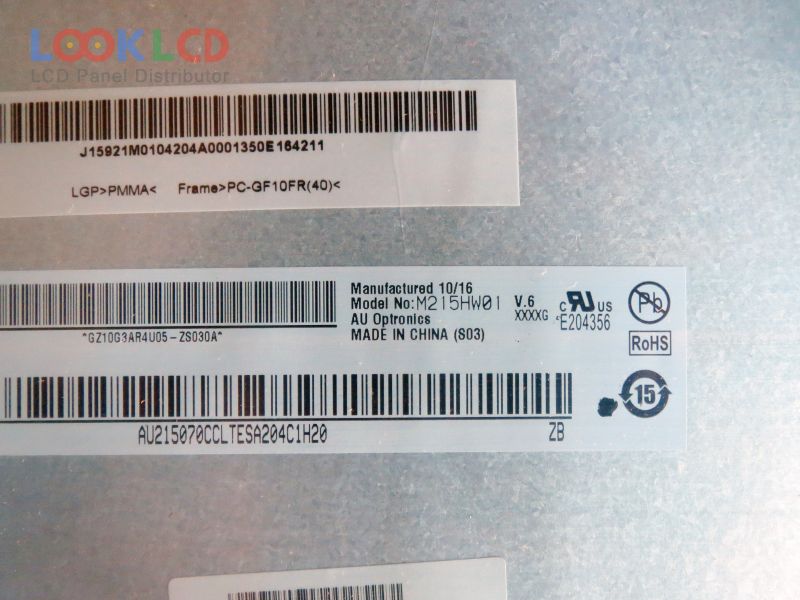

| PartNumber | M215HW01 V6 |
| Značka | AUO |
| Velikost | 21.5 |
| aplikace | DMPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | M215HW01 V6 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 21.5 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 476.64×268.11 mm |
| obrys | 495.6×292.2×10.7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193168% |
| Doba odezvy | 3.8/1.2 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 10S8P×2CNWLEDWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| M215H1-L02 | Innolux | 21.5 | 1920×1080 |
| M215H1-L03 | Innolux | 21.5 | 1920×1080 |
| M215H3-LA1 | Innolux | 21.5 | 1920×1080 |
| M215HGE-L10 | Innolux | 21.5 | 1920×1080 |
| M215HGE-L21 | Innolux | 21.5 | 1920×1080 |
| M215HJJ-L30 Rev.B1 | Innolux | 21.5 | 1920×1080 |
| M215HW01 V0 | AUO | 21.5 | 1920×1080 |
| M215HW01 V6 | AUO | 21.5 | 1920×1080 |
| M215HW02 V0 | AUO | 21.5 | 1920×1080 |
| M215HW03 V1Q0 | AUO | 21.5 | 1920×1080 |
| HR215WU1-120 | BOE | 21.5 | 1920×1080 |
| LM201WE3-TLF8 | LG Display | 20.1 | 1680×1050 |
| LM238WF2-SSG2 | LG Display | 23.8 | 1920×1080 |
| LTM15C423S | TOSHIBA | 15.0 | 1024×768 |
| LTM190EX-L21 | Samsung | 19.0 | 1280×1024 |
| LTM230TT01 | Samsung | 23.0 | 2048×1152 |
| M170EP01 V2 | AUO | 17.0 | 1280×1024 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M200RW01 V3 | AUO | 20.0 | 1600×900 |
| M270H3-L01 | Innolux | 27.0 | 1920×1080 |
