| PartNumber | M215HW03 V1Q0 |
| Značka | AUO |
| Velikost | 21.5 |
| aplikace | DMPC |
| Rozlišení | 1920×1080 |
| Složení | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | Mini LVDS |
| značka panelu | AUO |
| panelový model | M215HW03 V1Q0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 21.5 inch |
| rozlišení | 1920(RGB)×1080 , FHD |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 476.64×268.11 mm |
| obrys | 495.6×292.2×8.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC) |
| Doba odezvy | 3.8/1.2 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 16S4PWLEDWithout Driver |

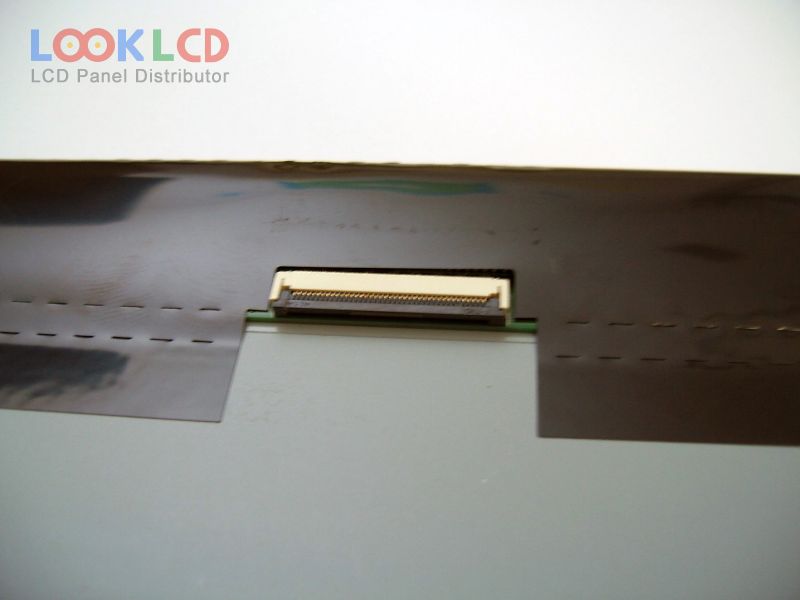

| signálové rozhraní | Mini LVDS, 40 pins |
| vstupní napětí | 3.3/12.8/27.0/-10.3V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikace | DMPC |
