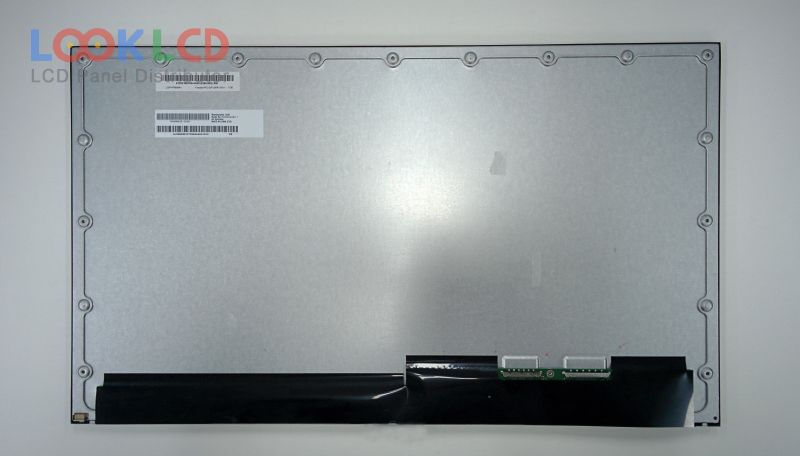

| PartNumber | M238DAN01.1 Q0 |
| Značka | AUO |
| Velikost | 23.8 |
| aplikace | DMPC |
| Rozlišení | 2560×1440 |
| Složení | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | AUO |
| panelový model | M238DAN01.1 Q0 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 23.8 inch |
| rozlišení | 2560(RGB)×1440 , Quad-HD |
| zobrazovací mód | AHVA, Normally Black, Transmissive |
| aktivní oblast | 526.85×296.35 mm |
| obrys | 534.74×213.26×12.3 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), sRGB100% |
| Doba odezvy | 14 (Typ.)(G to G) |
| úhel pohledu | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 20S4PWLEDWithout Driver |
| signálové rozhraní | LVDS (4 ch, 8-bit), 92 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
