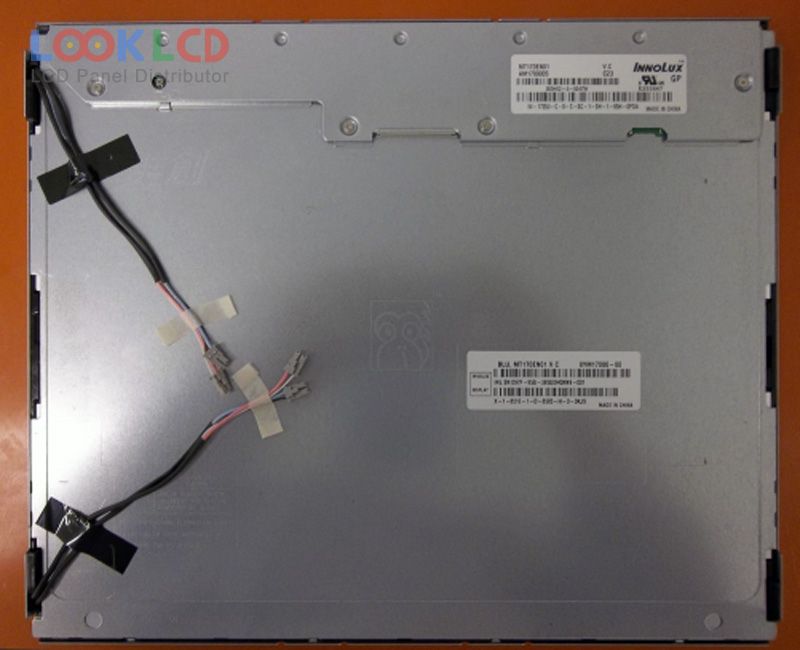

| PartNumber | MT170EN01 V.C |
| Značka | Innolux |
| Velikost | 17.0 |
| aplikace | DMPC |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | INNOLUX |
| panelový model | MT170EN01 V.C |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 17.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 337.92×270.336 mm |
| obrys | 358.5×296.5×16.5 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 1/4 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLG1 | LG Display | 17.0 | 1280×1024 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
| LTN170X2-L02 | Samsung | 17.0 | 1440×900 |
| M170E5-L09 | Innolux | 17.0 | 1280×1024 |
| M170EG01 VH | AUO | 17.0 | 1280×1024 |
| MT170EN01 V.1 | Innolux | 17.0 | 1280×1024 |
| MT170EN01 V.9 | Innolux | 17.0 | 1280×1024 |
| MT170EN01 V.C | Innolux | 17.0 | 1280×1024 |
| LM230WF3-S2E4 | LG Display | 23.0 | 1920×1080 |
| LM240WU7-SLB3 | LG Display | 24.0 | 1920×1200 |
| LM260WU1-SLB1 | LG Display | 25.5 | 1920×1200 |
| LTM150XH-L06 | Samsung | 15.0 | 1024×768 |
| LTM200KT05 | Samsung | 20.0 | 1600×900 |
| M170EG01 V9 | AUO | 17.0 | 1280×1024 |
| M216H1-L01 | Innolux | 21.6 | 1920×1080 |
| M270H1-L01 | Innolux | 27.0 | 1920×1080 |
| SVA190WX05TB | SVA-NEC | 19.0 | 1440×900 |
| TM190MFS01 | Tianma | 19.0 | 1440×900 |
