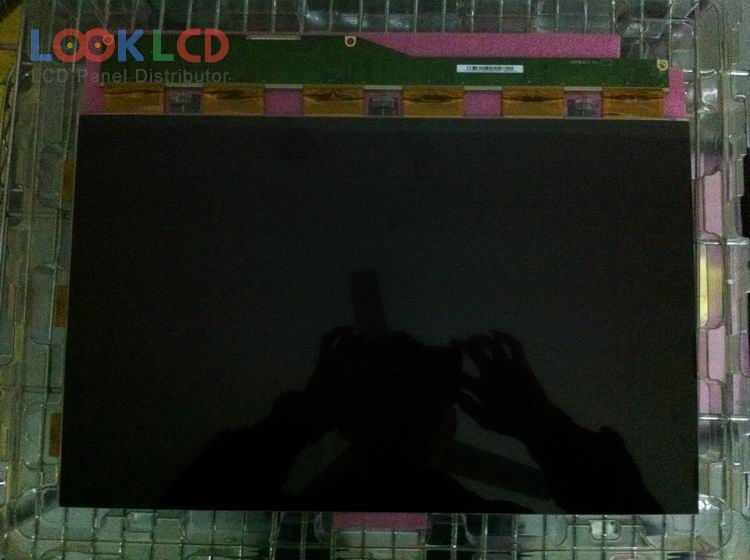

| PartNumber | TM190MFS01 |
| Značka | Tianma |
| Velikost | 19.0 |
| aplikace | DMPC |
| Rozlišení | 1440×900 |
| Složení | CELL |
| Jas | 0 |
| CR | 1000:1 |
| Barvy | 16.7M |
| Podsvícení | No B/L |
| Rozhraní | LVDS |
| značka panelu | TIANMA |
| panelový model | TM190MFS01 |
| typ panelu | a-Si TFT-LCD , CELL |
| velikost panelu | 19.0 inch |
| rozlišení | 1440(RGB)×900 , WXGA+ |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 408.24×255.15 mm |
| povrch | |
| kontrastní poměr | 1000:1 (Typ.) |
| zobrazit barvy | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odezvy | 1.3/3.7 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
| G190EG01 V1 | AUO | 19.0 | 1280×1024 |
| HSD190ME13-A13 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN3-A01 | HannStar | 19.0 | 1280×1024 |
| LM190E02-A4 | LG Display | 19.0 | 1280×1024 |
| LM190WX1-TLL1 | LG Display | 19.0 | 1440×900 |
| M190PW01 V8 | AUO | 19.0 | 1440×900 |
| NL128102BC29-01B | NLT | 19.0 | 1280×1024 |
| TM190MCS02 | Tianma | 19.0 | 1440×900 |
| TM190MDS01 | Tianma | 19.0 | 1440×900 |
| TM190MFS01 | Tianma | 19.0 | 1440×900 |
| LM170E03-TLJ6 | LG Display | 17.0 | 1280×1024 |
| LM185WH1-TLD3 | LG Display | 18.5 | 1366×768 |
| LM201U05-SLA3 | LG Display | 20.1 | 1600×1200 |
| LM215WF1-TLA1 | LG Display | 21.5 | 1920×1080 |
| LM215WF5-SLA1 | LG Display | 21.5 | 1920×1080 |
| LM220WE4-SLB1 | LG Display | 22.0 | 1680×1050 |
| LM270WQ1-SDBV | LG Display | 27.0 | 2560×1440 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| MT190AW02 V.4 | Innolux | 19.0 | 1440×900 |
| MT230DW01 V.0 | Innolux | 23.0 | 1920×1080 |
