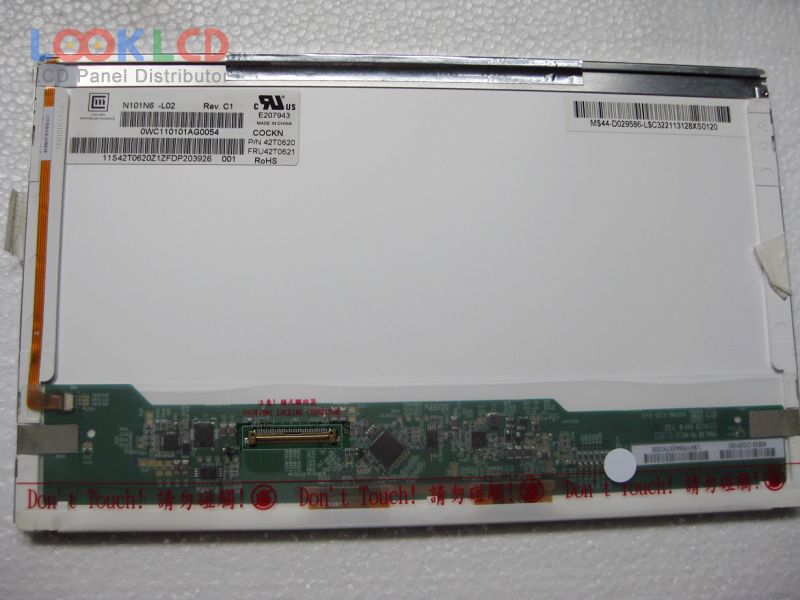

| PartNumber | N101N6-L02 |
| Značka | Innolux |
| Velikost | 10.1 |
| aplikace | NOPC |
| Rozlišení | 1024×576 |
| Složení | LCM |
| Jas | 200 |
| CR | 650:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | N101N6-L02 7 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1024(RGB)×576 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 222.72×125.28 mm |
| obrys | 235×143×5.2 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 650:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 3/7 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 9S3PWLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NOPC |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| LP101WH1-TLB5 | LG Display | 10.1 | 1366×768 |
| LTN101AL03-001 | Samsung | 10.1 | 1280×800 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW0A | AUO | 10.1 | 1024×600 |
| B101AW06 V4 | AUO | 10.1 | 1024×600 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LP116WH1-TLN1 | LG Display | 11.6 | 1366×768 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
