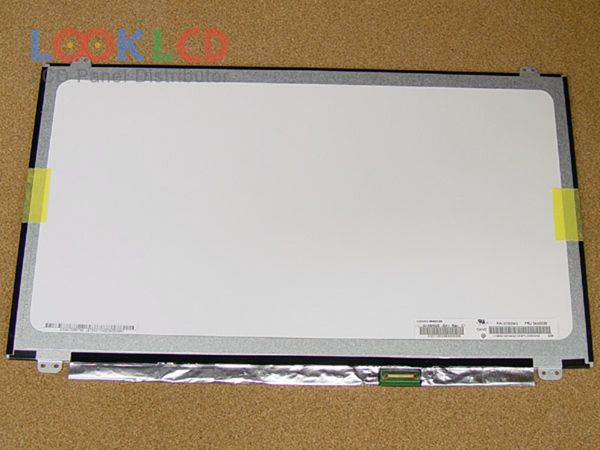

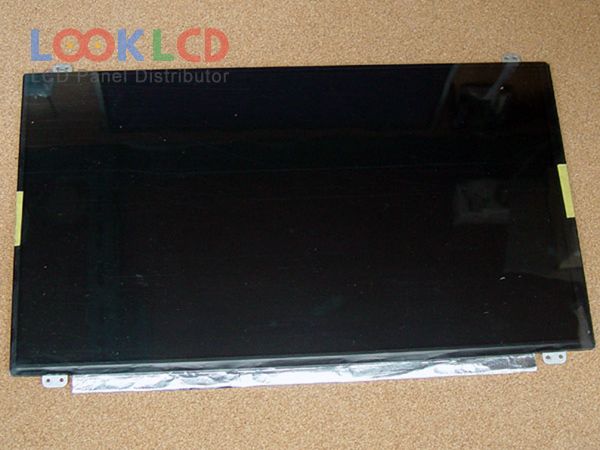

| PartNumber | N156BGE-EA1 |
| Značka | Innolux |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | eDP |
| značka panelu | CHIMEI INNOLUX |
| panelový model | N156BGE-EA1 8 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 359.5×224.3×3.25 mm |
| tvarový styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 3/8 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |

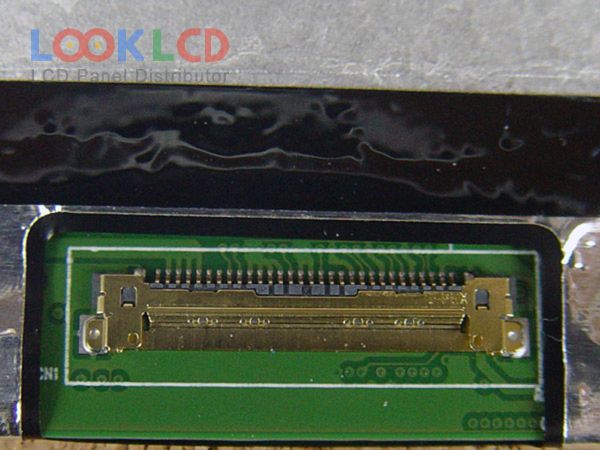

| signálové rozhraní | eDP (1 Lane), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
