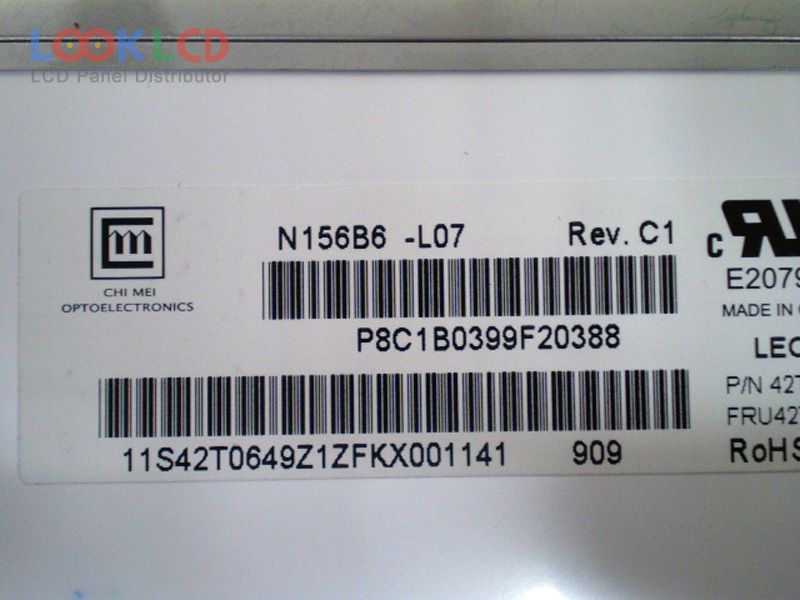

| PartNumber | N156B6-L07 |
| Značka | Innolux |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 650:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CMO |
| panelový model | N156B6-L07 61 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 359.3×209.5×5.5 mm |
| tvarový styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare, Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 650:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 3/5 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| N156B3-L0A | Innolux | 15.6 | 1366×768 |
| N156B6-L07 | Innolux | 15.6 | 1366×768 |
| N156B6-L0A | Innolux | 15.6 | 1366×768 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
| N156BGE-L62 | Innolux | 15.6 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| B125XW01 V0 | AUO | 12.5 | 1366×768 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| LP121X05-A2 | LG Display | 12.1 | 1024×768 |
| LP125WF2-SPB3 | LG Display | 12.5 | 1920×1080 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| LTN121AT01-001 | Samsung | 12.1 | 1280×800 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| N173FGE-L21 | Innolux | 17.3 | 1600×900 |
