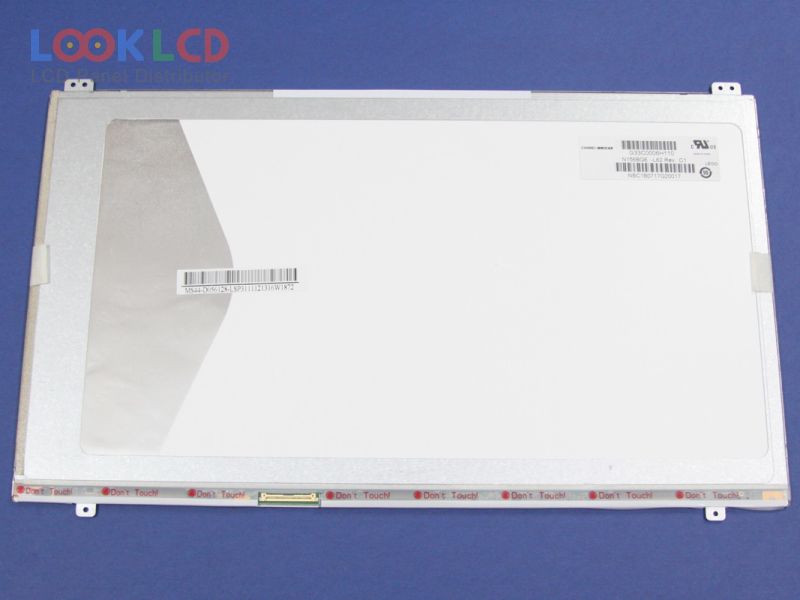

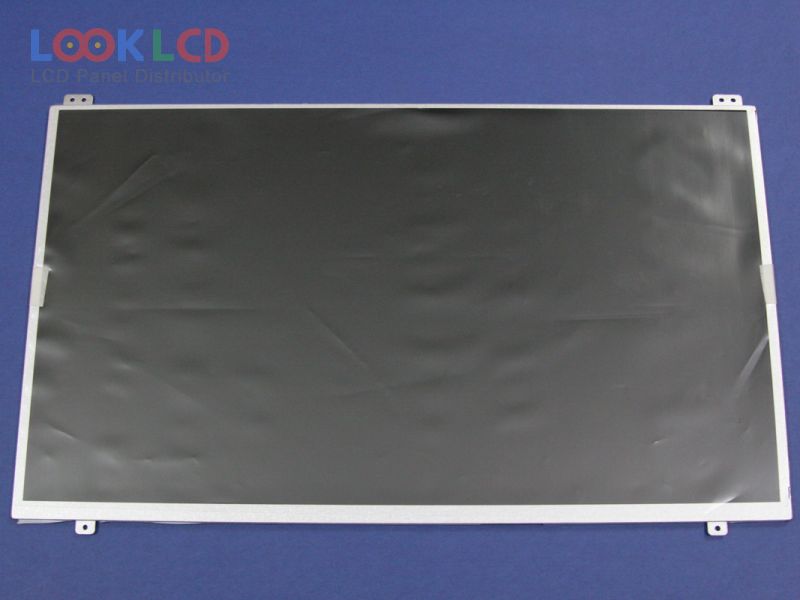

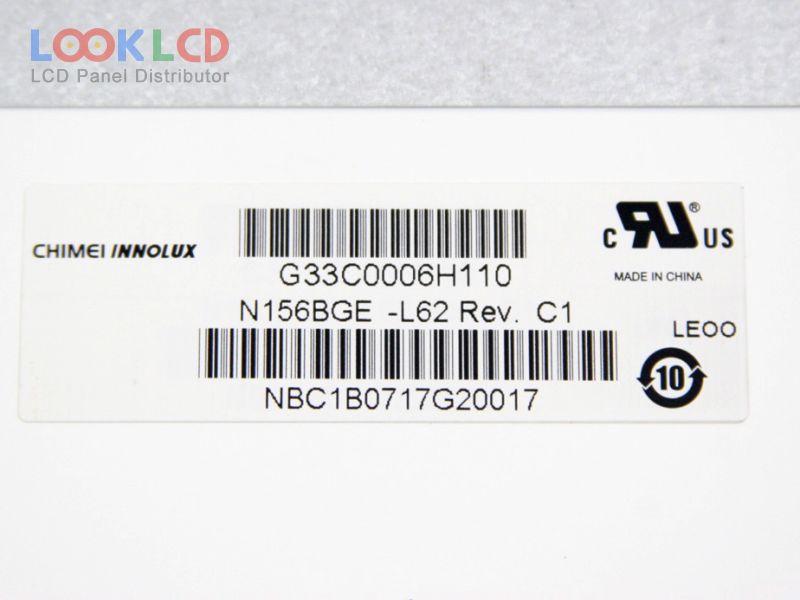

| PartNumber | N156BGE-L62 |
| Značka | Innolux |
| Velikost | 15.6 |
| aplikace | NBPC |
| Rozlišení | 1366×768 |
| Složení | LCM |
| Jas | 220 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | N156BGE-L62 3 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.6 inch |
| rozlišení | 1366(RGB)×768 , WXGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 344.232×193.536 mm |
| obrys | 359.3×222.45×4 mm |
| tvarový styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Min.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 3/5 (Typ.)(Tr/Td) |
| úhel pohledu | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | NBPC |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
| N156B6-L01 | Innolux | 15.6 | 1366×768 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156B6-L07 | Innolux | 15.6 | 1366×768 |
| N156B6-L0A | Innolux | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
| N156BGE-L62 | Innolux | 15.6 | 1366×768 |
| B121EW03 V6 | AUO | 12.1 | 1280×800 |
| B133XW07 V0 | AUO | 13.3 | 1366×768 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| LP125WF1-SPA3 | LG Display | 12.5 | 1920×1080 |
| LP140WF3-SPD1 | LG Display | 14.0 | 1920×1080 |
| LQ13X32 | SHARP | 13.3 | 1024×768 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| N156B6-L04 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
