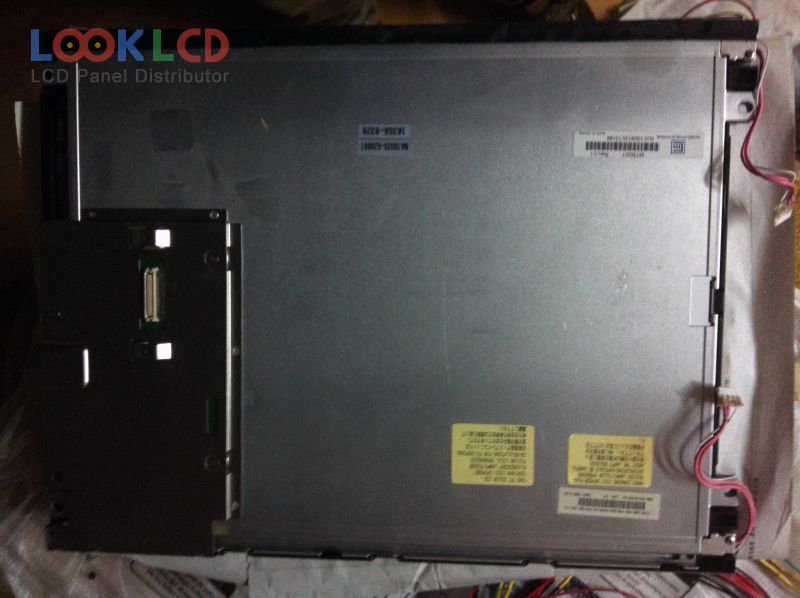

| PartNumber | NA19020-C262 |
| Značka | Fujitsu |
| Velikost | 15.0 |
| aplikace | DMPC |
| Rozlišení | 1024×768 |
| Složení | LCM |
| Jas | 250 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | Fujitsu |
| panelový model | NA19020-C262 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 15.0 inch |
| rozlišení | 1024(RGB)×768 , XGA |
| zobrazovací mód | MVA, Normally Black, Transmissive |
| aktivní oblast | 304.128×228.096 mm |
| obrys | 347.3×263.5×16.8 mm |
| povrch | Antiglare (Haze 25%), Hard coating (2H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 15/10 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS/TTL (2 ch, 6-bit), 60 pins |
| vstupní napětí | 5.0V (Typ.) |
| aplikace | DMPC |
