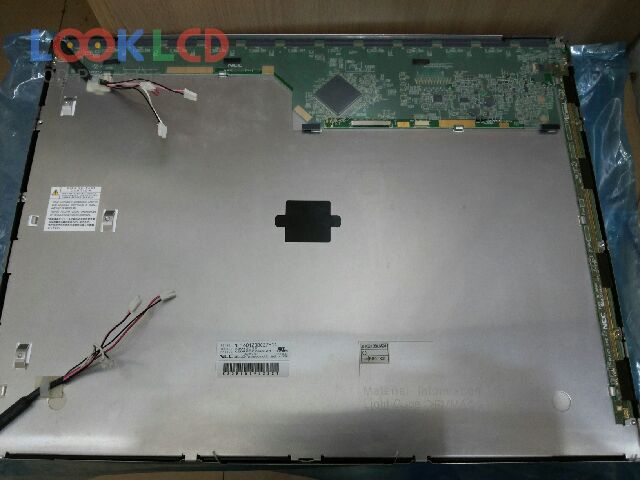

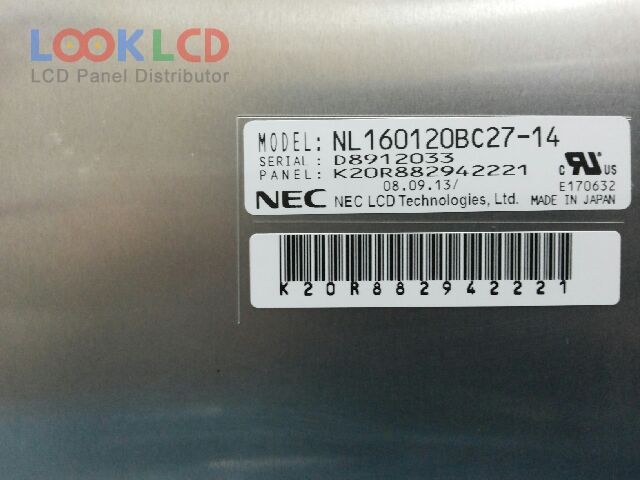

| PartNumber | NL160120BC27-14 |
| Značka | NLT |
| Velikost | 21.3 |
| aplikace | DMPC |
| Rozlišení | 1600×1200 |
| Složení | LCM |
| Jas | 250 |
| CR | 550:1 |
| Barvy | 16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL160120BC27-14 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 21.3 inch |
| rozlišení | 1600(RGB)×1200 , UXGA |
| zobrazovací mód | SA-SFT, Normally Black, Transmissive |
| aktivní oblast | 432×324 mm |
| obrys | 457×350 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 250 cd/m² (Typ.) |
| kontrastní poměr | 550:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 11/9 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (2 ch, 8-bit), 40 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | DMPC |
