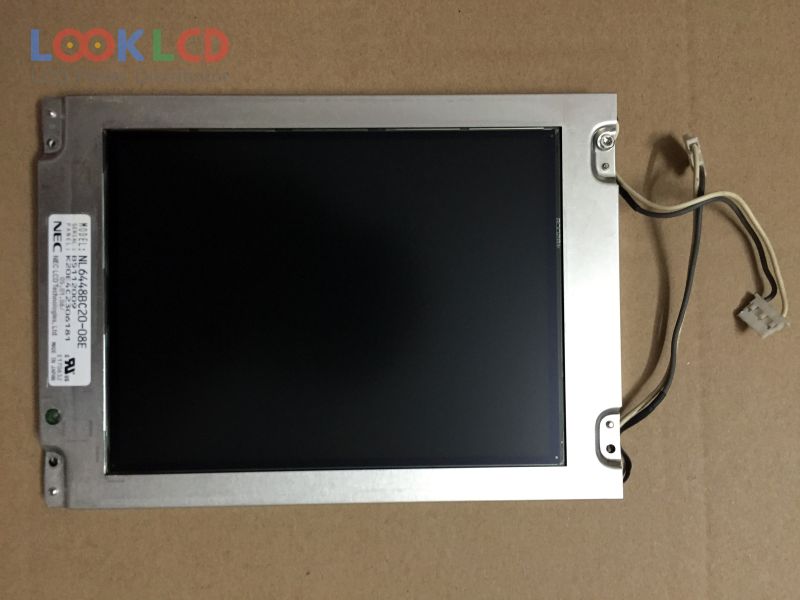

| PartNumber | NL6448BC20-08E |
| Značka | NLT |
| Velikost | 6.5 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 300 |
| CR | 250:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL6448BC20-08E |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 132.48×99.36 mm |
| obrys | 178.8×126.8 mm |
| povrch | Antiglare (Haze 16%), Hard coating (2H), Antireflection |
| jas | 300 cd/m² (Typ.) |
| kontrastní poměr | 250:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193142% |
| Doba odezvy | 13/36 (Typ.)(Tr/Td) |
| úhel pohledu | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |

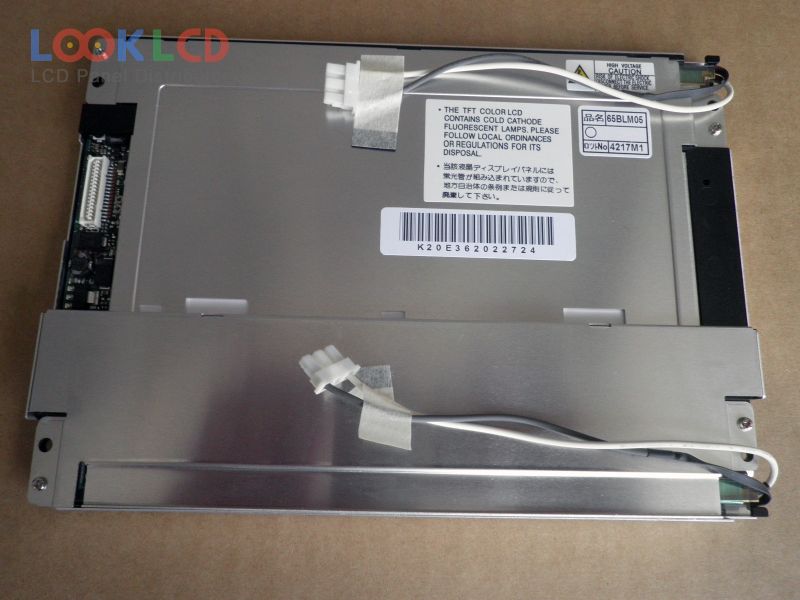

| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | Parallel RGB, 31 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplikace | IA |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL6448BC26-08D | NLT | 8.4 | 640×480 |
| NL6448BC26-15 | NLT | 8.4 | 640×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC33-21 | NLT | 10.4 | 640×480 |
| NL6448BC33-50 | NLT | 10.4 | 640×480 |
| NL6448BC33-59 | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| G104VN01 V0 | AUO | 10.4 | 640×480 |
| G104VN01 V1 | AUO | 10.4 | 640×480 |
| HGS128645-Y-EH-LV | Other | 2.7 | 128×64 |
| LB170E01-SL01 | LG Display | 17.0 | 1280×1024 |
| LMG7420PLFC | KOE | 5.1 | 240×128 |
| LMG7420PLFC-X | KOE | 5.1 | 240×128 |
| NL8060BC21-02 | NLT | 8.4 | 800×600 |
| OEL9M0078-G-E | Other | 1.45 | 132×16 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
