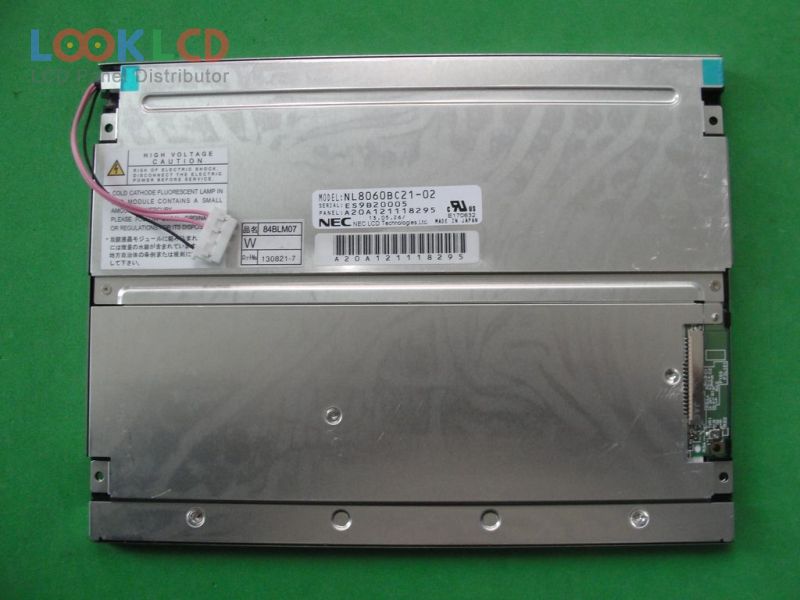

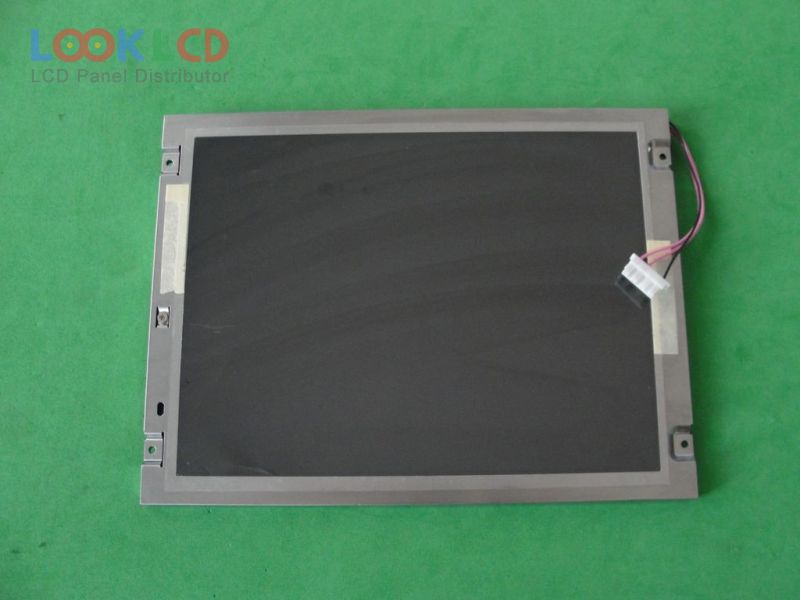

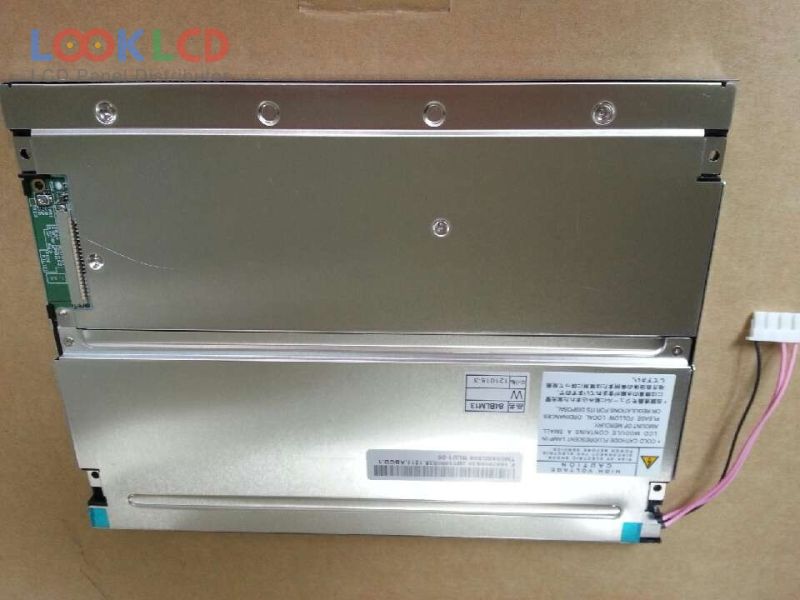

| PartNumber | NL8060BC21-02 |
| Značka | NLT |
| Velikost | 8.4 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 400 |
| CR | 600:1 |
| Barvy | 262K/16.7M |
| Podsvícení | CCFL |
| Rozhraní | LVDS |
| značka panelu | NEC |
| panelový model | NL8060BC21-02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.4×127.8 mm |
| obrys | 200×152 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| Doba odezvy | 6/19 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupní napětí | 3.3V (Typ.) |
| rohs: | |
| aplikace | IA |
