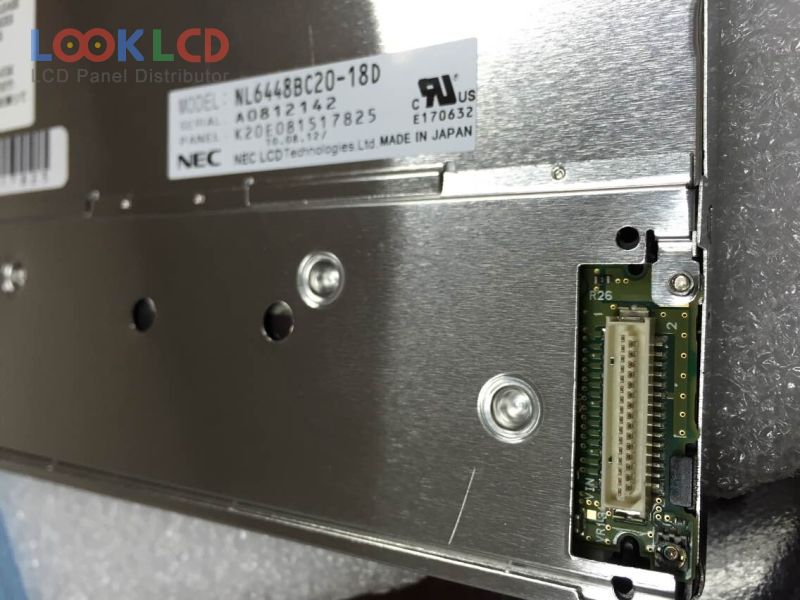

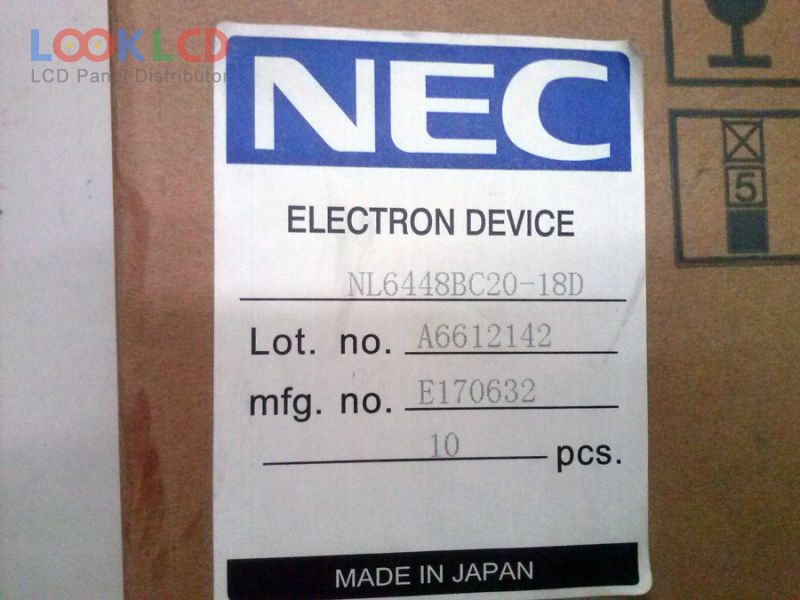

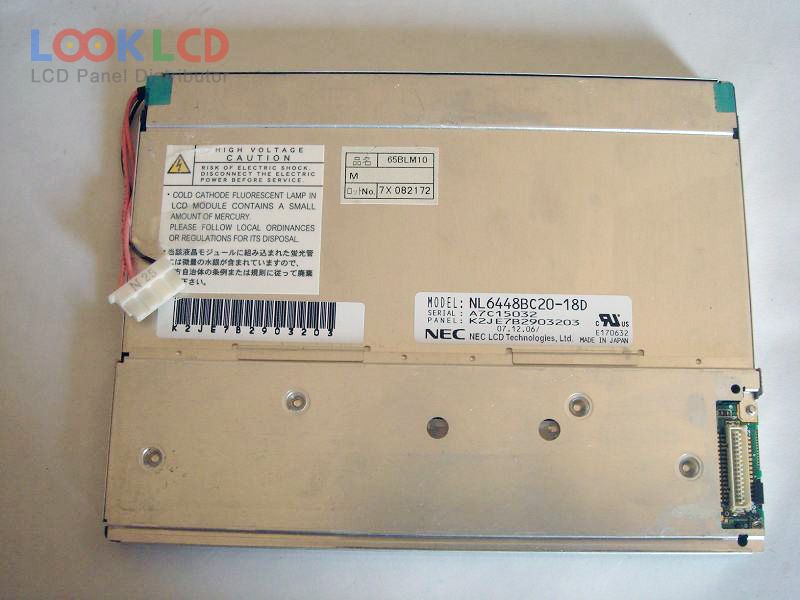

| PartNumber | NL6448BC20-18D |
| Značka | NLT |
| Velikost | 6.5 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 400 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL6448BC20-18D |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 6.5 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 132.48×99.36 mm |
| obrys | 153×118 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 400 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | 6/19 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 31 pins |
| vstupní napětí | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplikace | IA |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC20-08E | NLT | 6.5 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL6448BC26-08D | NLT | 8.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL6448BC33-64 | NLT | 10.4 | 640×480 |
| NL6448BC33-64E | NLT | 10.4 | 640×480 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| AA104VC01 | Mitsubishi | 10.4 | 640×480 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| DMF5003NF-FW | Kyocera | 4.7 | 160×128 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G156HTN01.0 | AUO | 15.6 | 1920×1080 |
| KCS072VG1MJ-G40 | Kyocera | 7.2 | 640×480 |
| LQ150X1LG81 | SHARP | 15.0 | 1024×768 |
| LTA057A347F | TOSHIBA | 5.7 | 320×240 |
| NL6448BC26-15 | NLT | 8.4 | 640×480 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
