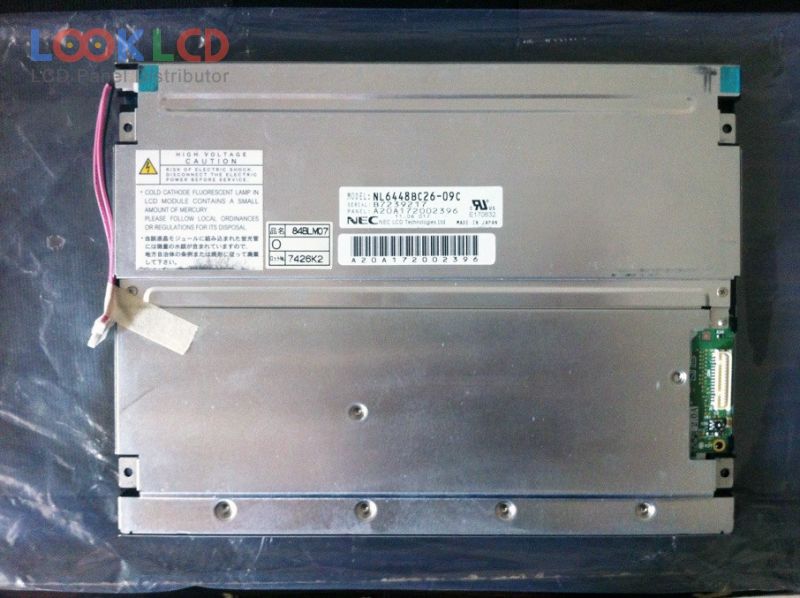

| PartNumber | NL6448BC26-09C |
| Značka | NLT |
| Velikost | 8.4 |
| aplikace | IA |
| Rozlišení | 640×480 |
| Složení | LCM |
| Jas | 750 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL6448BC26-09C |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.4 inch |
| rozlišení | 640(RGB)×480 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 170.88×128.16 mm |
| obrys | 200×152×11 mm |
| povrch | Clear, Hard coating (2H), Antireflection |
| jas | 750 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | 6/19 (Typ.)(Tr/Td) |
| úhel pohledu | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS (1 ch, 6-bit), 31 pins |
| vstupní napětí | 3.3/5.0V (Typ.) |
| aplikace | IA |
