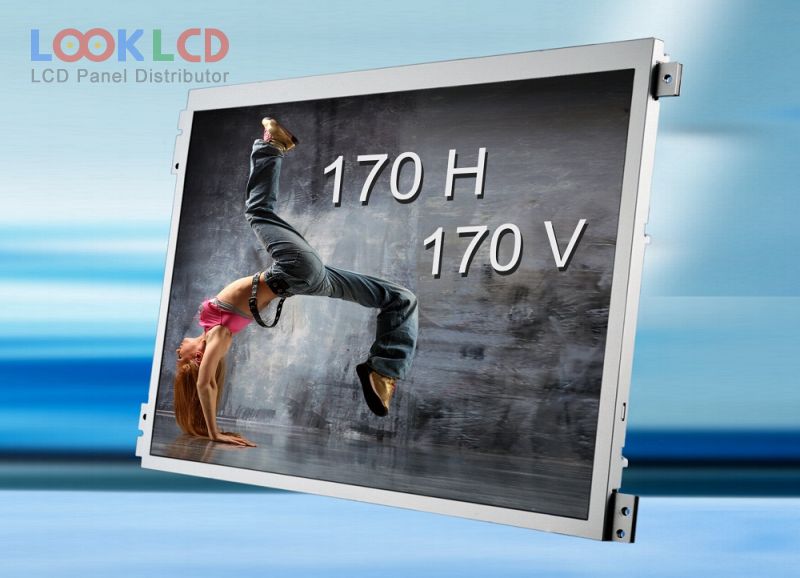

| PartNumber | TCG121SVLQAPNN-AN20 |
| Značka | Kyocera |
| Velikost | 12.1 |
| aplikace | IA |
| Rozlišení | 800×600 |
| Složení | LCM |
| Jas | 450 |
| CR | 650:1 |
| Barvy | 16.2M |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | Kyocera |
| panelový model | TCG121SVLQAPNN-AN20 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 12.1 inch |
| rozlišení | 800(RGB)×600 , SVGA |
| zobrazovací mód | AWV, Normally Black, Transmissive |
| aktivní oblast | 246×184.5 mm |
| obrys | 278.3×207.5×10 mm |
| povrch | Antiglare |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 650:1 (Typ.) |
| zobrazit barvy | 16.2M (6-bit + FRC) |
| Doba odezvy | 18/12 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | CMOS (1 ch, 8-bit), 30 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | IA |
| G121XN01 V0 | AUO | 12.1 | 1024×768 |
| HSD121PHW1-A03 | HannStar | 12.1 | 1366×768 |
| HT12X21-220 | HYDIS | 12.1 | 1024×768 |
| LB121S03-TL04 | LG Display | 12.1 | 800×600 |
| LMG9980ZWCC-01 | KOE | 12.1 | 800×600 |
| LQ121S1LG41 | SHARP | 12.1 | 800×600 |
| LQ12X12 | SHARP | 12.1 | 1024×768 |
| LTD121EDDZ | TOSHIBA | 12.1 | 1024×768 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| TCG121SVLQAPNN-AN20 | Kyocera | 12.1 | 800×600 |
| AA065VE11ADA11 | Mitsubishi | 6.5 | 640×480 |
| EL640.480-AG1 ET CC | Lumineq | 8.1 | 640×480 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G104X1-L04 | Innolux | 10.4 | 1024×768 |
| G156XW01 V1 | AUO | 15.6 | 1366×768 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| KCB6448BSTT-X4 | Kyocera | 10.4 | 640×480 |
| LQ12S41 | SHARP | 12.1 | 800×600 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
