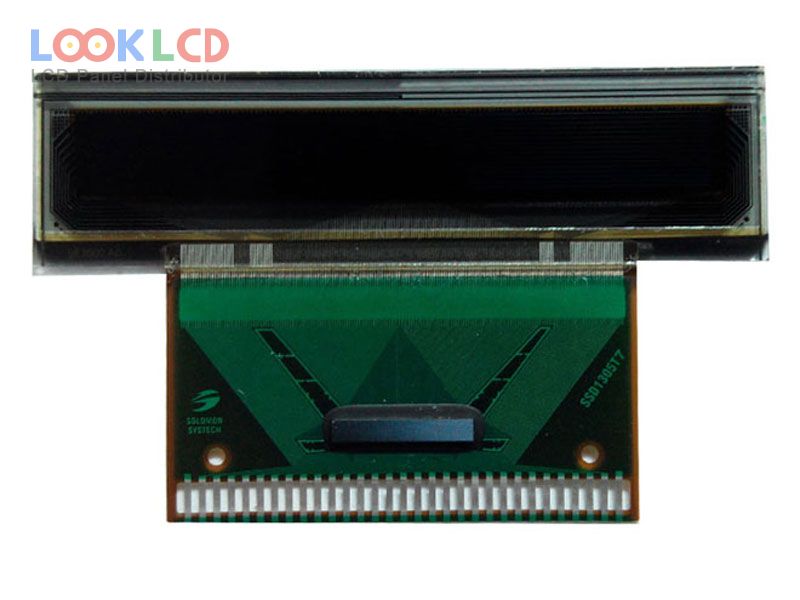

| PartNumber | OEL9M0078-R-E |
| Značka | Other |
| Velikost | 1.45 |
| aplikace | IA |
| Rozlišení | 132×16 |
| Složení | OLED |
| Jas | |
| CR | 10000:1 |
| Barvy | Mono(Red) |
| Podsvícení | self |
| Rozhraní | CPU/SPI/I²C |
| značka panelu | TRULY |
| panelový model | OEL9M0078-R-E |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.45 inch |
| rozlišení | 132×16 |
| aktivní oblast | 36.412×4.62 mm |
| obrys | 43.06×11.75×1.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | Mono(Red) (1-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| řidič ic | TAB Built-in SSD1305T7R1 |
| signálové rozhraní | CPU/SPI/I²C, 31 pins |
| rohs: | |
| aplikace | IA |
| OEL9M0039-R-E | Other | 1.5 | 128×128 |
| OEL9M0064-B-E | Other | 2.0 | 128×32 |
| OEL9M0064-W-E | Other | 2.0 | 128×32 |
| OEL9M0065-B-E | Other | 2.7 | 256×64 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0078-B-E | Other | 1.45 | 132×16 |
| OEL9M0078-G-E | Other | 1.45 | 132×16 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| AM-1024600KTMQW-01H | AMPIRE | 7.0 | 1024×600 |
| C555001 | SII | 5.7 | 320×240 |
| G150XG01 V4 | AUO | 15.0 | 1024×768 |
| LM32K10 | SHARP | 4.7 | 320×240 |
| LQ104S1DG34 | SHARP | 10.4 | 800×600 |
| LQ130V3FZ20G | SHARP | 13.0 | 640×480 |
| LTA104D183F | TOSHIBA | 10.4 | 800×600 |
| NL6448AC33-18 | NLT | 10.4 | 640×480 |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
| PD080SL5 | E Ink | 8.0 | 800×600 |
