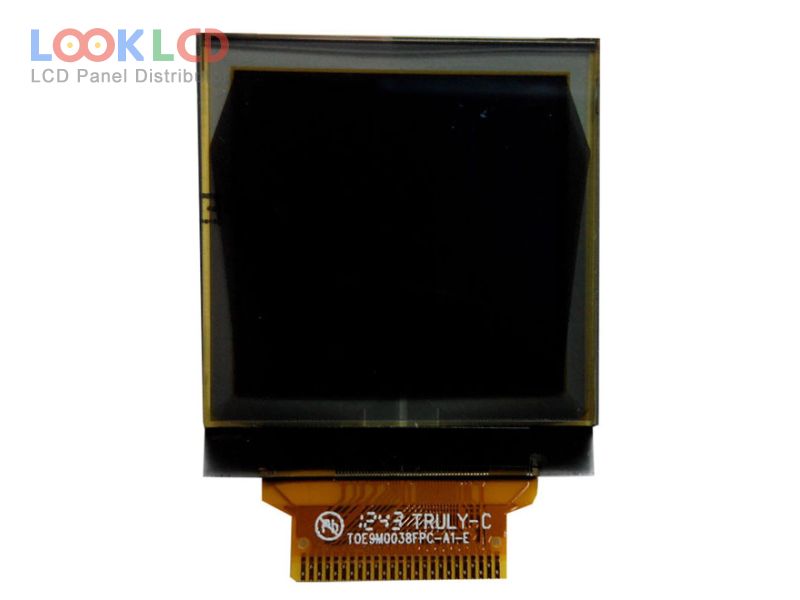

| PartNumber | OEL9M0039-R-E |
| Značka | Other |
| Velikost | 1.5 |
| aplikace | MPH |
| Rozlišení | 128×128 |
| Složení | OLED |
| Jas | |
| CR | 10000:1 |
| Barvy | Grayscale(R) |
| Podsvícení | self |
| Rozhraní | CPU/SPI |
| značka panelu | TRULY |
| panelový model | OEL9M0039-R-E |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 1.5 inch |
| rozlišení | 128×128 |
| aktivní oblast | 26.86×26.86 mm |
| obrys | 34.9×37.8×1.6 mm |
| povrch | |
| jas | |
| kontrastní poměr | 10000 : 1 (Min.) |
| zobrazit barvy | Grayscale(R) (4-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvence | 100Hz |
| řidič ic | COG Built-in SSD1329Z |
| signálové rozhraní | 8-bit 6800/8080 parallel, SPI, 25 pins |
| vstupní napětí | 3.0/3.0/15.0V (Typ.)(VDD/VDDIO/VCC) |
| aplikace | MPH |
| OEL9M0039-G-E | Other | 1.5 | 128×128 |
| OEL9M0064-G-E | Other | 2.0 | 128×32 |
| OEL9M0064-W-E | Other | 2.0 | 128×32 |
| OEL9M0065-Y-E | Other | 2.7 | 256×64 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
| OEL9M0073-Y-E | Other | 1.0 | 128×64 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| OEL9M0084-W-E | Other | 0.91 | 128×32 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| AMS260CM61 | Samsung | 2.6 | 240×320 |
| AMS429QC08 | Samsung | 4.3 | 540×960 |
| BTL507212-W677L | BOE | 5.0 | 720×1280 |
| DLC0320DUG | Other | 3.2 | 240×320 |
| LH400WS1-SD03 | LG Display | 4.0 | 640×1136 |
| LQ034J1LX01 | SHARP | 3.4 | 320×480 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LQ050T1SX05(G) | SHARP | 5.0 | 1080×1920 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TM028HBHG02 | Tianma | 2.8 | 240×320 |
